FXD63B150

New Surplus

Click for Info
$1,495.00

Certified Reconditioned

Qty in Stock: 1

$795.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

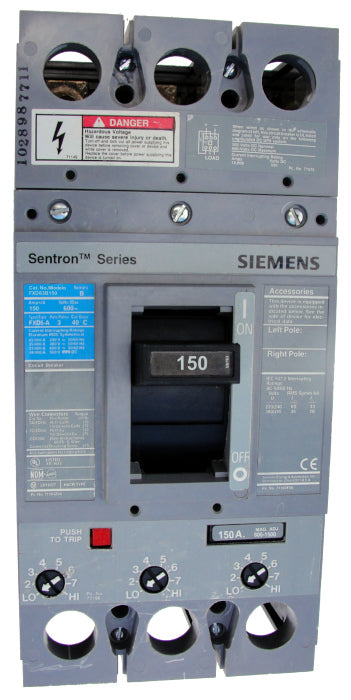

FD Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-Interchangeable Trip Unit, 150 Ampere at 40 Degree Celsius, 3 Pole, 240V AC, 480V AC, and 600V AC @ 50/60 HZ, 250V DC and 500V DC, Interrupting Ratings: 65 Kiloampere @ 240V AC, 35 Kiloampere @ 480V AC, 22 Kiloampere @ 600V AC, 30 Kiloampere @ 250V DC, 18 Kiloampere @ 500V DC.

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Siemens / ITE
Warranty One Year
Connection Bolt On
Frame Type FD
Amperage 150
Poles 3
Voltage Max 600
Interrupting Capacity Rating 65 Kiloampere @ 240V AC, 35 Kiloampere @ 480V AC, 22 Kiloampere @ 600V AC, 30 Kiloampere @ 250V DC, 18 Kiloampere @ 500V DC
Trip Setting 800-1500
