FG3225S18
Product Description
EG Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 225 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC, S18 Option Includes: [12-24 VAC/VDC Shunt Trip Installed, Right Pole Mounted, Exiting Rear], Line and Load End Terminals Standard

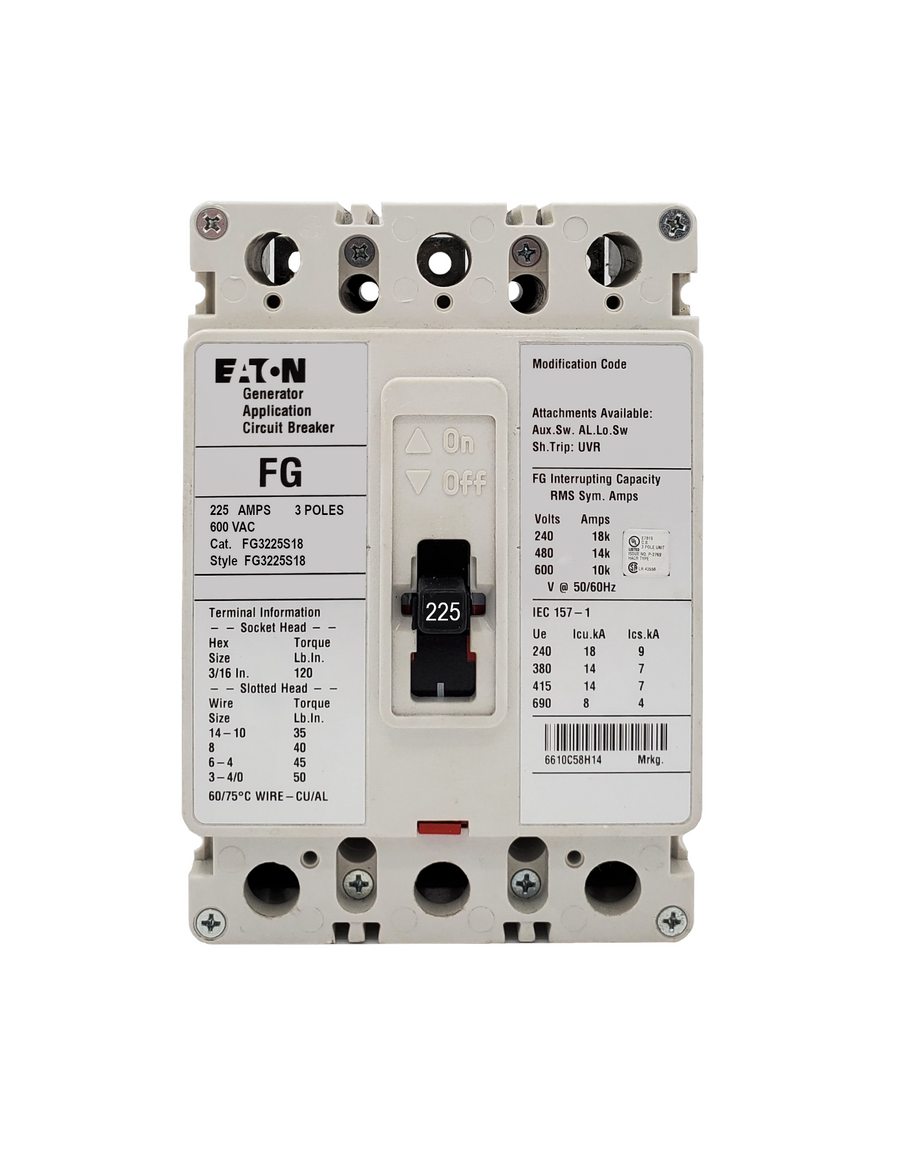

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | S18 Option Includes: [12-24 VAC/VDC Shunt Trip Installed, Right Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | EG |
| Amperage | 225 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC. |
| Standard Lug Type | Line and Load End Terminals Standard |
New Surplus
Certified Reconditioned
Qty in Stock: 1
