Specs are as follows:

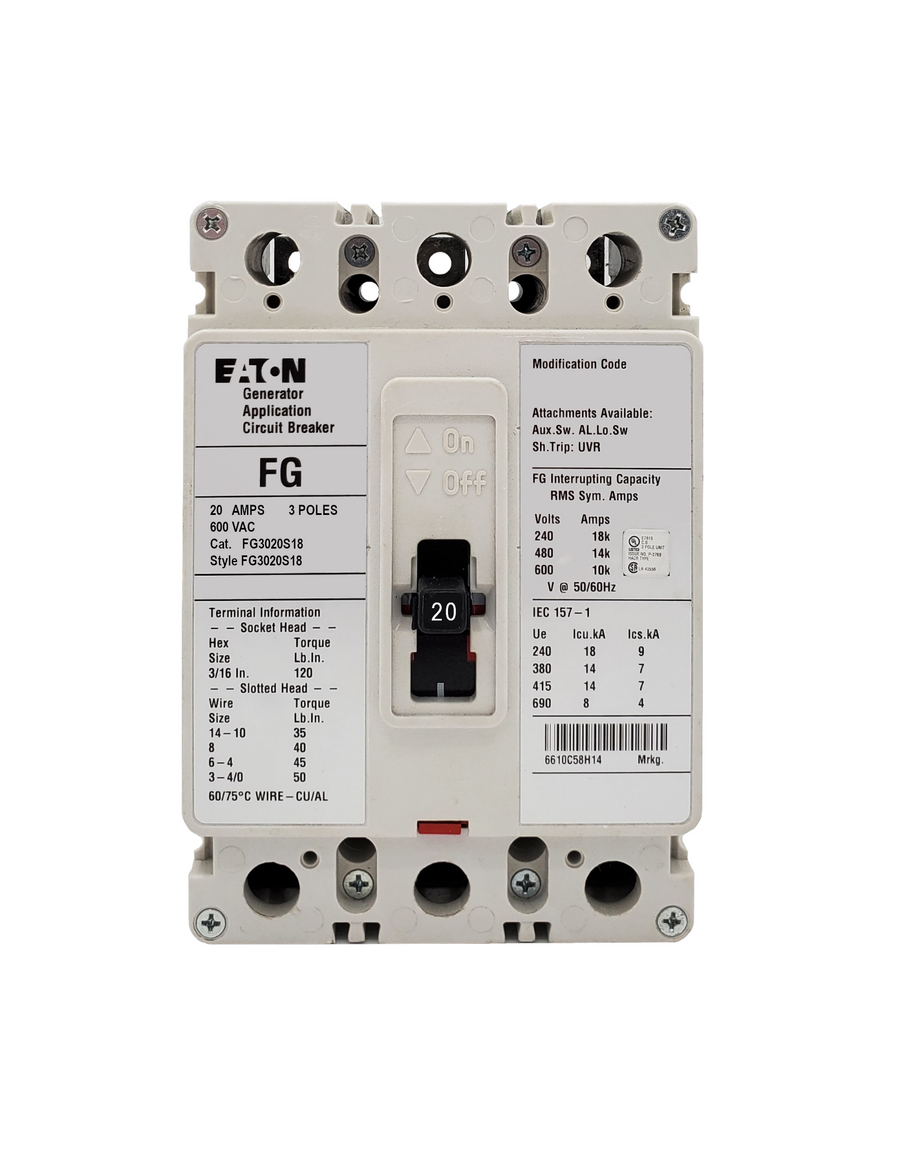

EG Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 20 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC, S18 Option Includes: [12-24 VAC/VDC Shunt Trip Installed, Right Pole Mounted, Exiting Rear], Line and Load End Terminals Standard.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Configuration||S18 Option Includes: [12-24 VAC/VDC Shunt Trip Installed, Right Pole Mounted, Exiting Rear]|
|Interrupting Capacity Rating||18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC.|
|Standard Lug Type||Line and Load End Terminals Standard|
