Product Description
Specs are as follows:

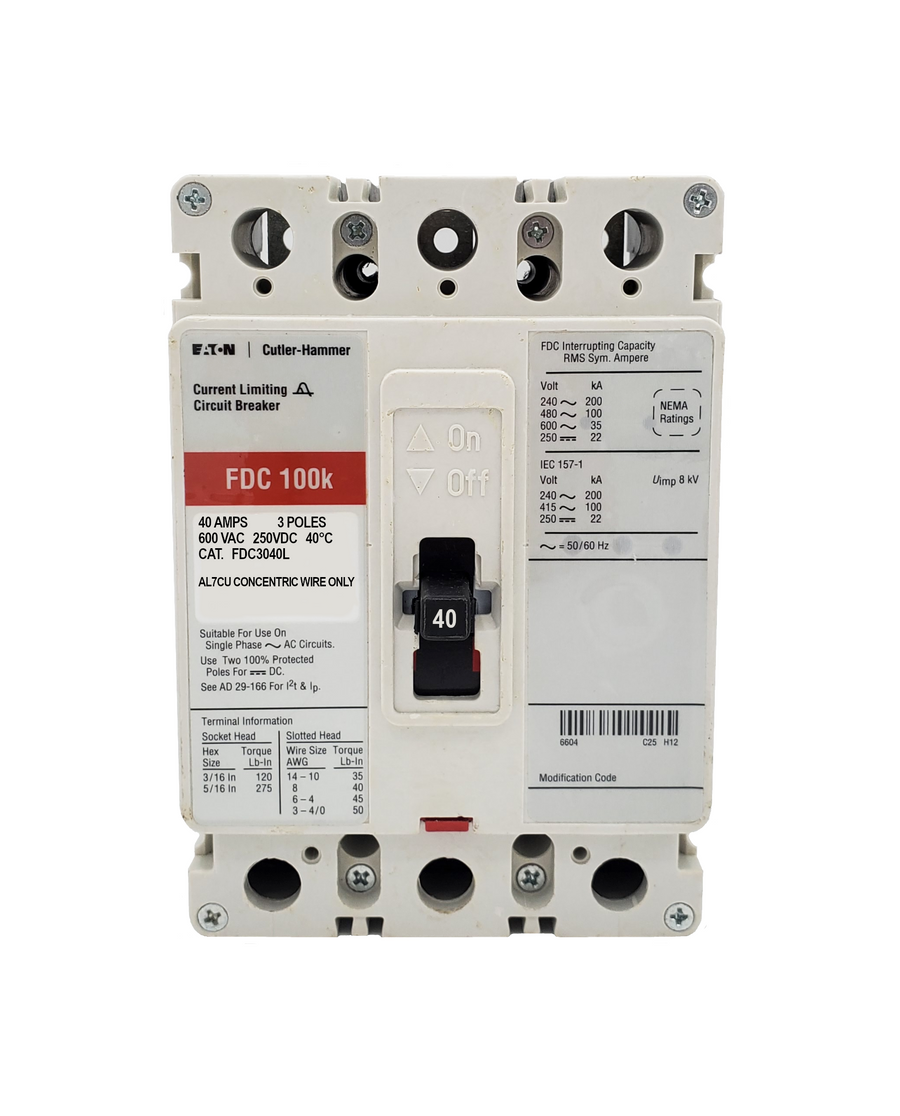

FDC Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 40 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 200 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, With Terminals Standard.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | FDC |
| Amperage | 40 |
| Poles | 3 |
| Voltage Max | 600 VAC / 250 VDC |
| Interrupting Capacity Rating | 200 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC |
| Standard Lug Type | With Terminals Standard |
