FDB3040 FDB3040L

New Surplus

Qty in Stock: 3

$225.00

Certified Reconditioned

Qty in Stock: 1

$140.00

(Blue Label) - Certified Reconditioned

Qty in Stock: 4

$126.00

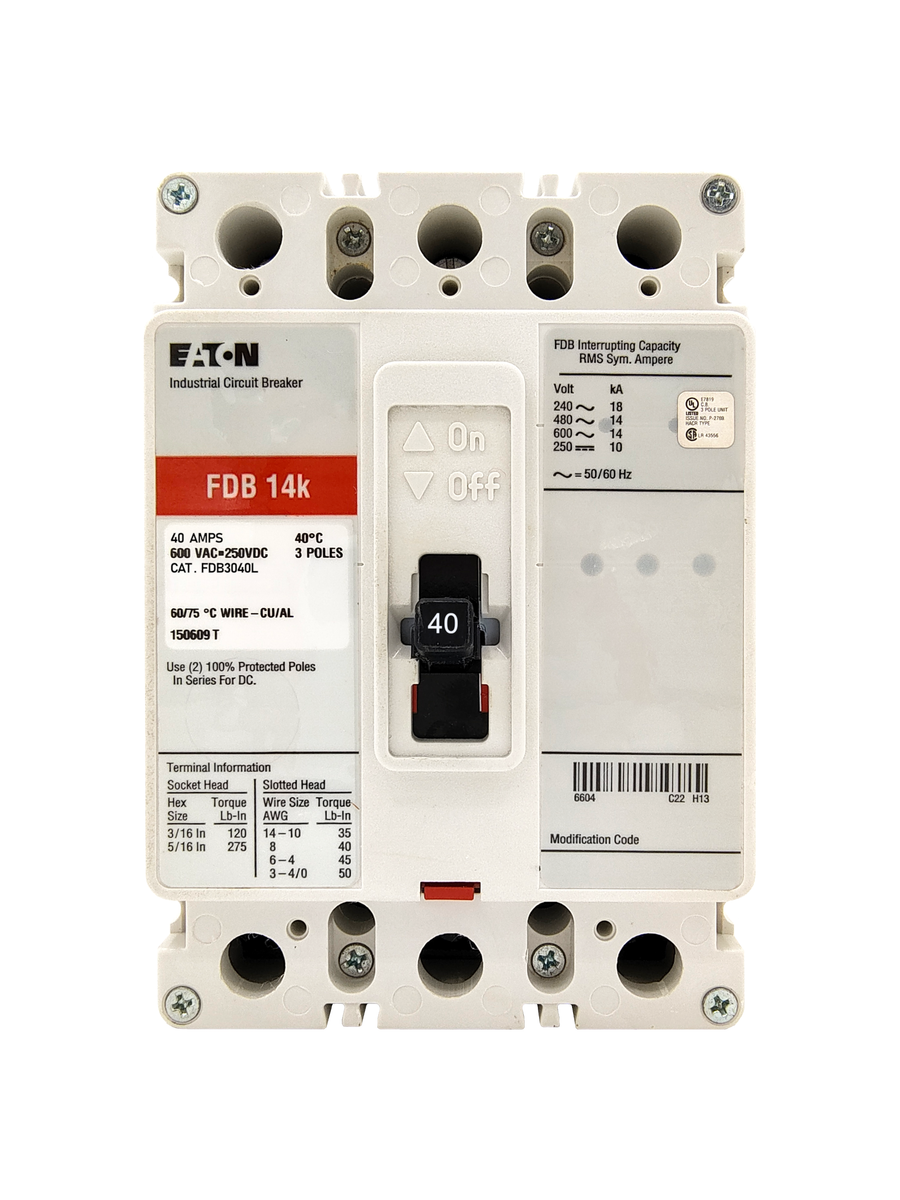

This product image represents a base model and is for identification purposes only.

Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.

1. Auxiliary Switches
2. Shunt Trips
3. Undervoltage Releases (UVRs)
4. Terminal/Lug Kits

Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Product Description


FDB Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 40 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 14 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, Line and Load End Terminals Standard.

Specifications


Manufacturer Eaton / Cutler Hammer
Warranty One Year
Connection Bolt On
Frame Type F
Amperage 40
Poles 3
Voltage Max 600
Interrupting Capacity Rating 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 14 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC
Standard Lug Type Line and Load
