FD3150LS06
Product Description
FD Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 150 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, S06 Option Includes: [48-127 VAC or 48-60 VDC Shunt Trip Installed, Left Pole Mounted, Exiting Rear], Line and Load End Terminals Standard

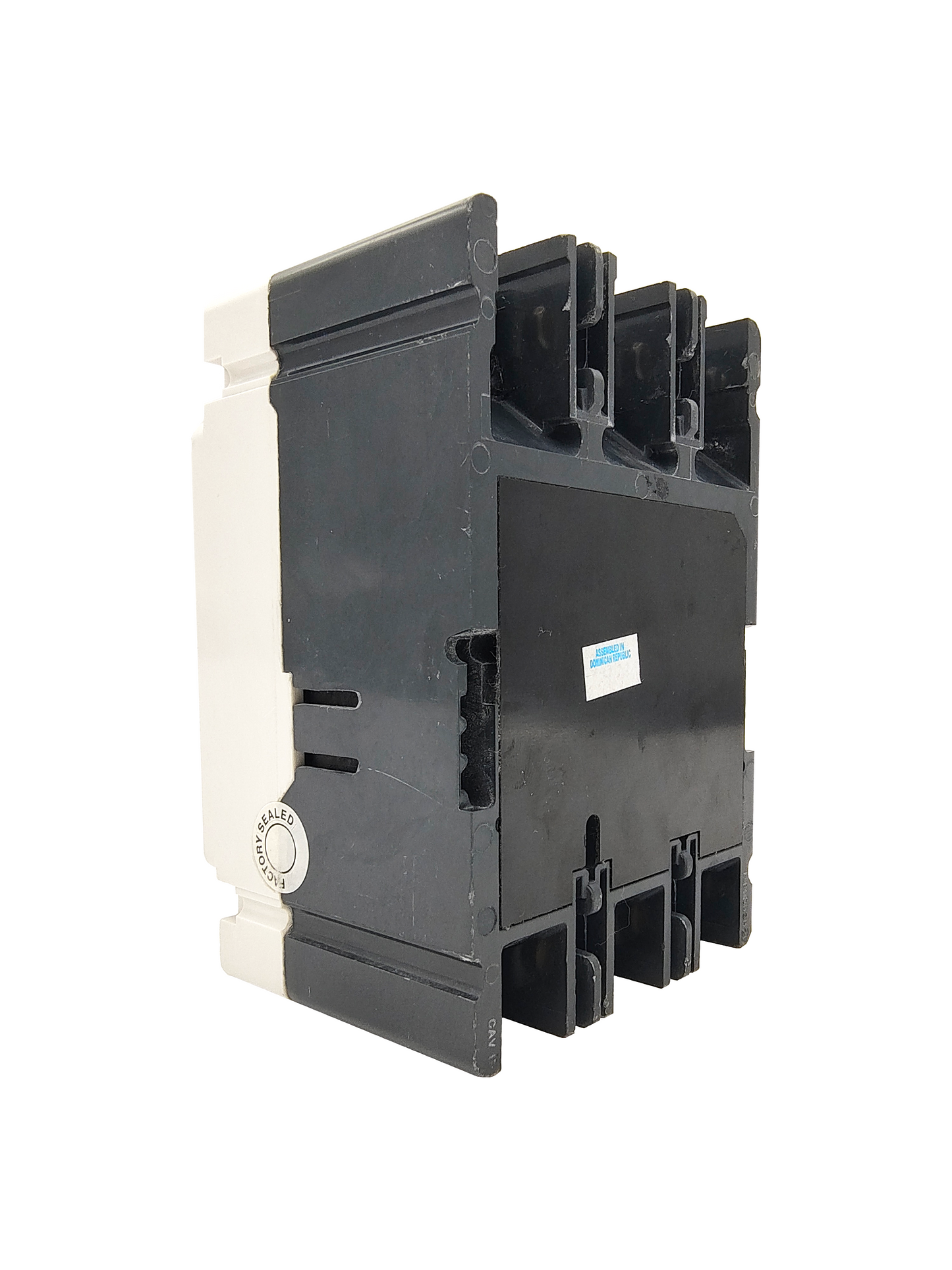

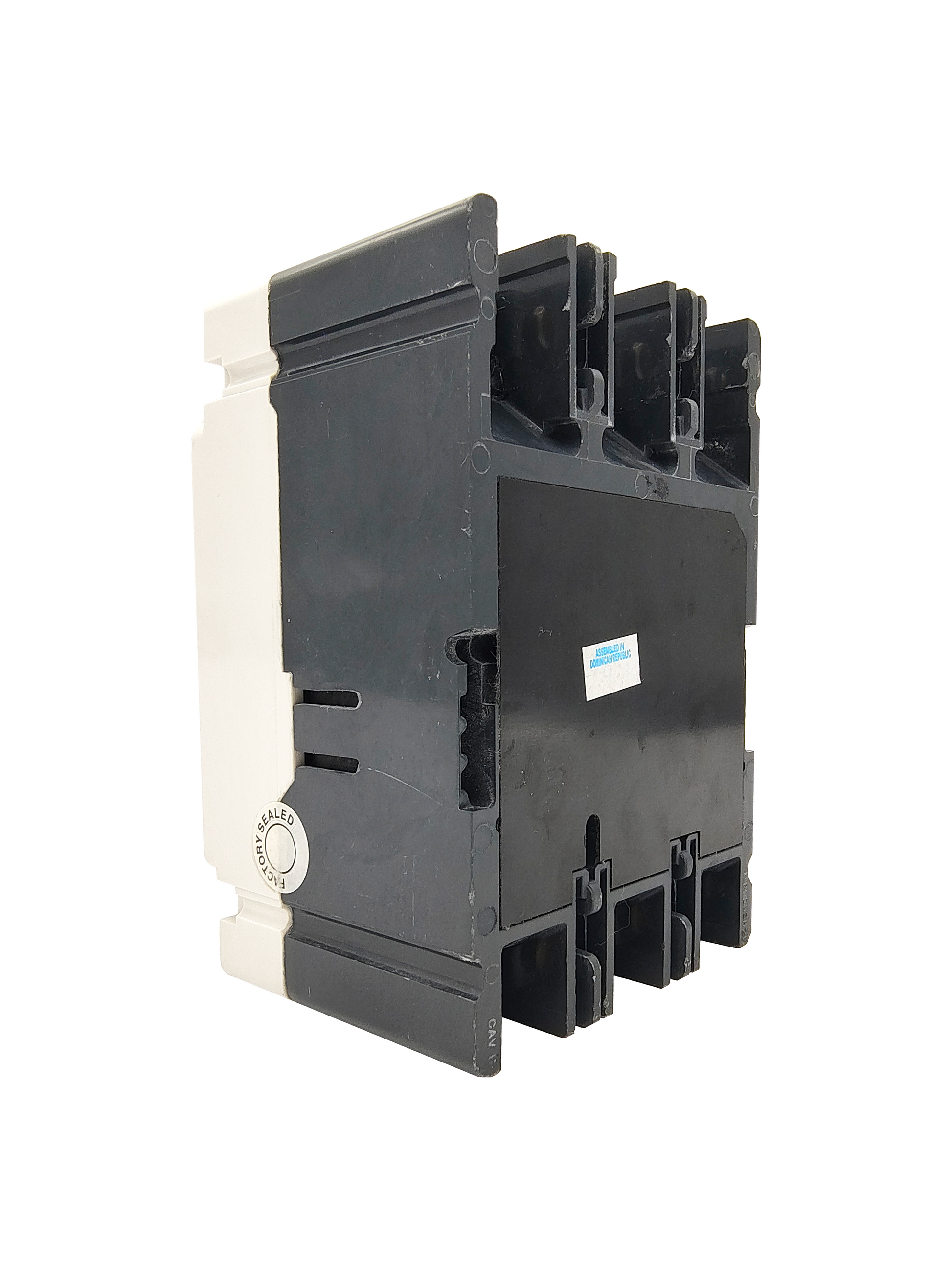

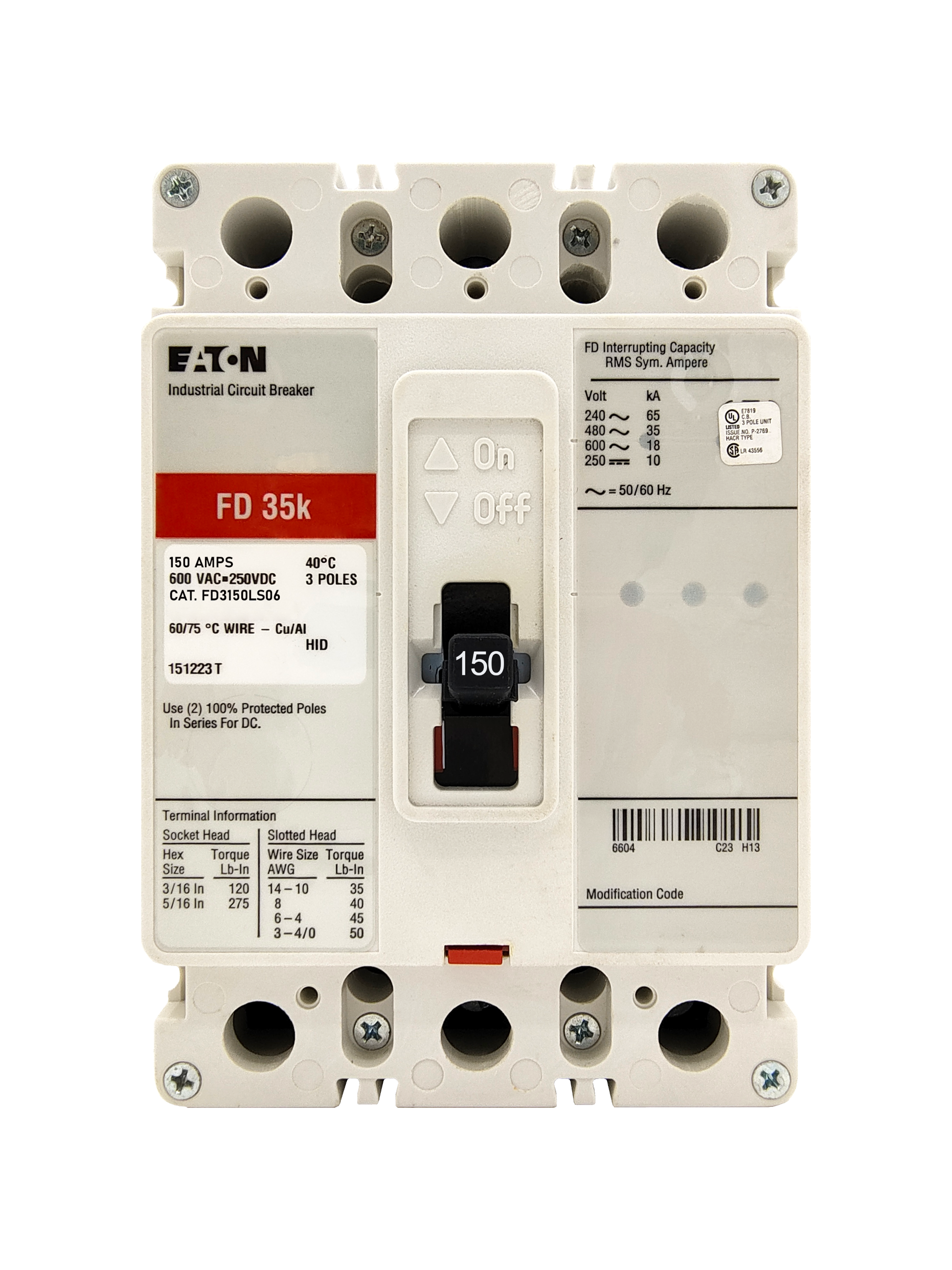

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | S06 Option Includes: [48-127 VAC or 48-60 VDC Shunt Trip Installed, Left Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | F |
| Amperage | 150 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC |
| Standard Lug Type | Line and Load |
Certified Reconditioned
Qty in Stock: 1
