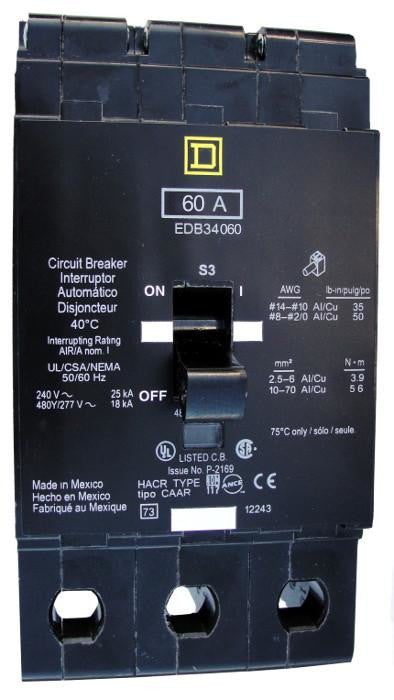

EDB Frame Style Molded Case Circuit Breaker
Look under Parts & Accessories to order accessories used to create additional configurations for this unit.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description
Specs are as follows:
EDB Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, VISI-TRIP Feature, 60 Ampere at 40 Degree Celsius, 3 Pole, 240 VAC, 480Y/277 VAC, Interrupting Ratings: 25 Kiloampere @ 240VAC, 18 Kiloampere @ 480Y/277 VAC, Load End Terminals Standard.Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | E |
| Amperage | 60 |
| Poles | 3 |
| Voltage Max | 480 |
| Interrupting Capacity Rating | 25 Kiloampere @ 240VAC, 18 Kiloampere @ 480Y/277 VAC |
