Specs are as follows:

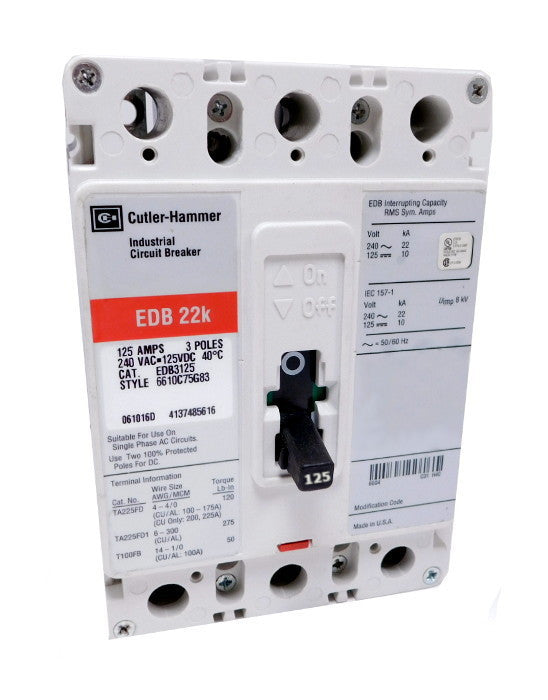

EDB Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 125 Ampere at 40 Degree Celsius, 3 Pole, 240VAC @ 50/60HZ, Interrupting Ratings: 22 Kiloampere @ 240VAC, 10 Kiloampere @ 125VDC, Line and Load End Terminals Standard.
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches
2. Optional Shunt Trips
3. Optional Terminal/Lug Kits
4. Optional Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Interrupting Capacity Rating||22 Kiloampere @ 240VAC, 10 Kiloampere @ 250VDC|
