EB3050L
Product Description
EB Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 50 Ampere at 40 Degree Celsius, 3 Pole, 240VAC @ 50/60HZ, Interrupting Ratings: 10 Kiloampere @ 240 VAC, 5 Kiloampere @ 125/250 VDC, Line and Load End Terminals Standard.

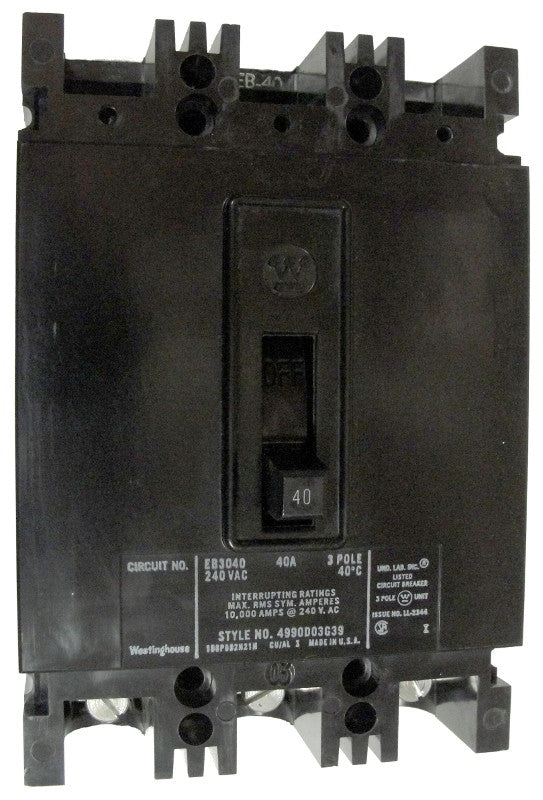

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse / Cutler-Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | F |
| Amperage | 50 |
| Poles | 3 |
| Voltage Max | 240 |
| Interrupting Capacity Rating | 10 Kiloampere @ 240 VAC, 5 Kiloampere @ 125/250 VDC |
| Standard Lug Type | Line and Load |
New Surplus
Certified Reconditioned
