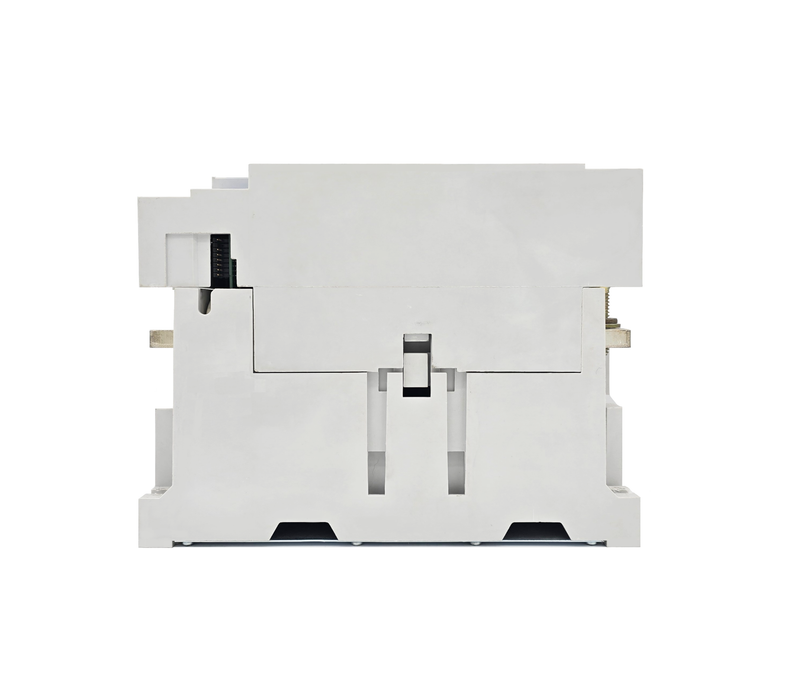

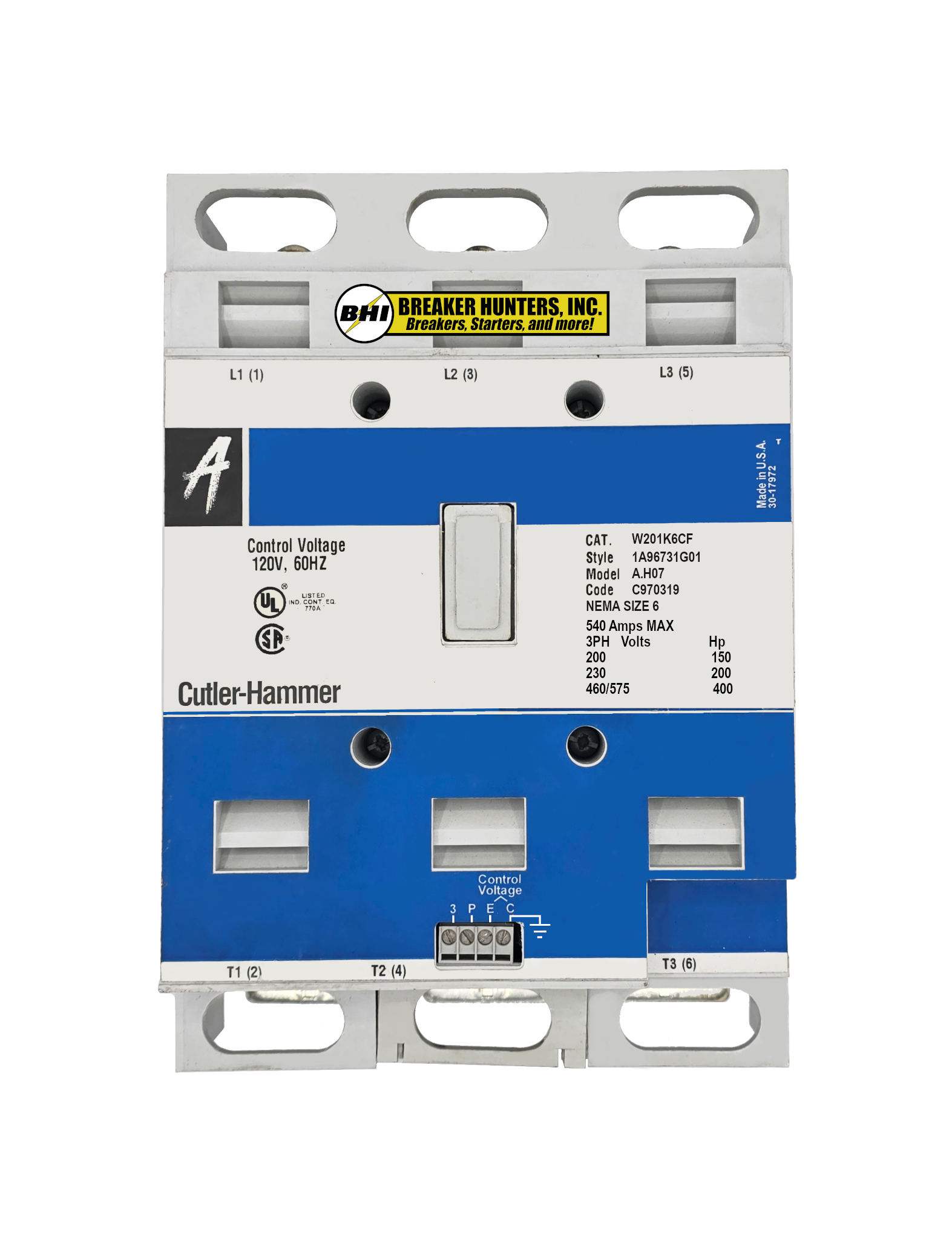

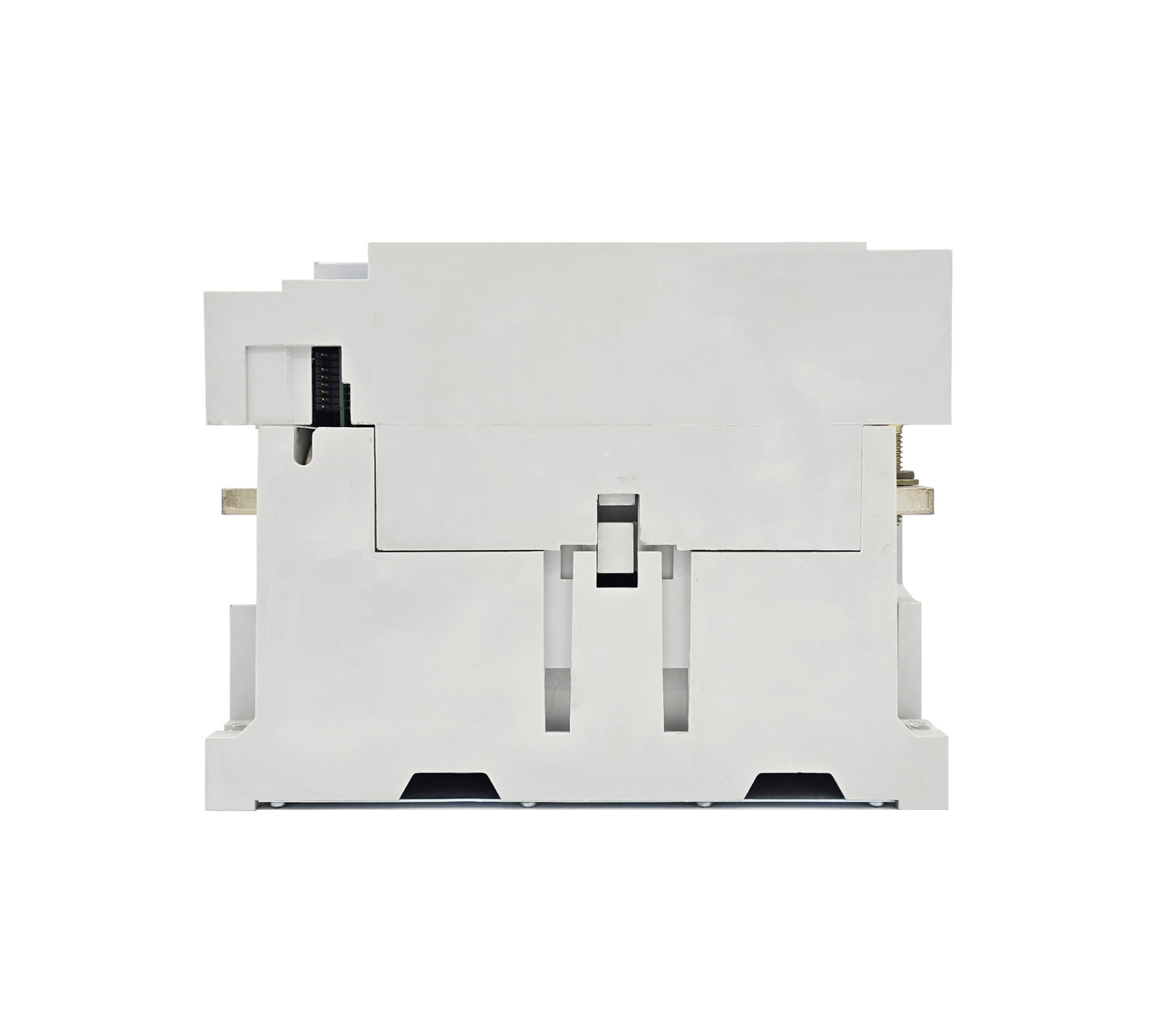

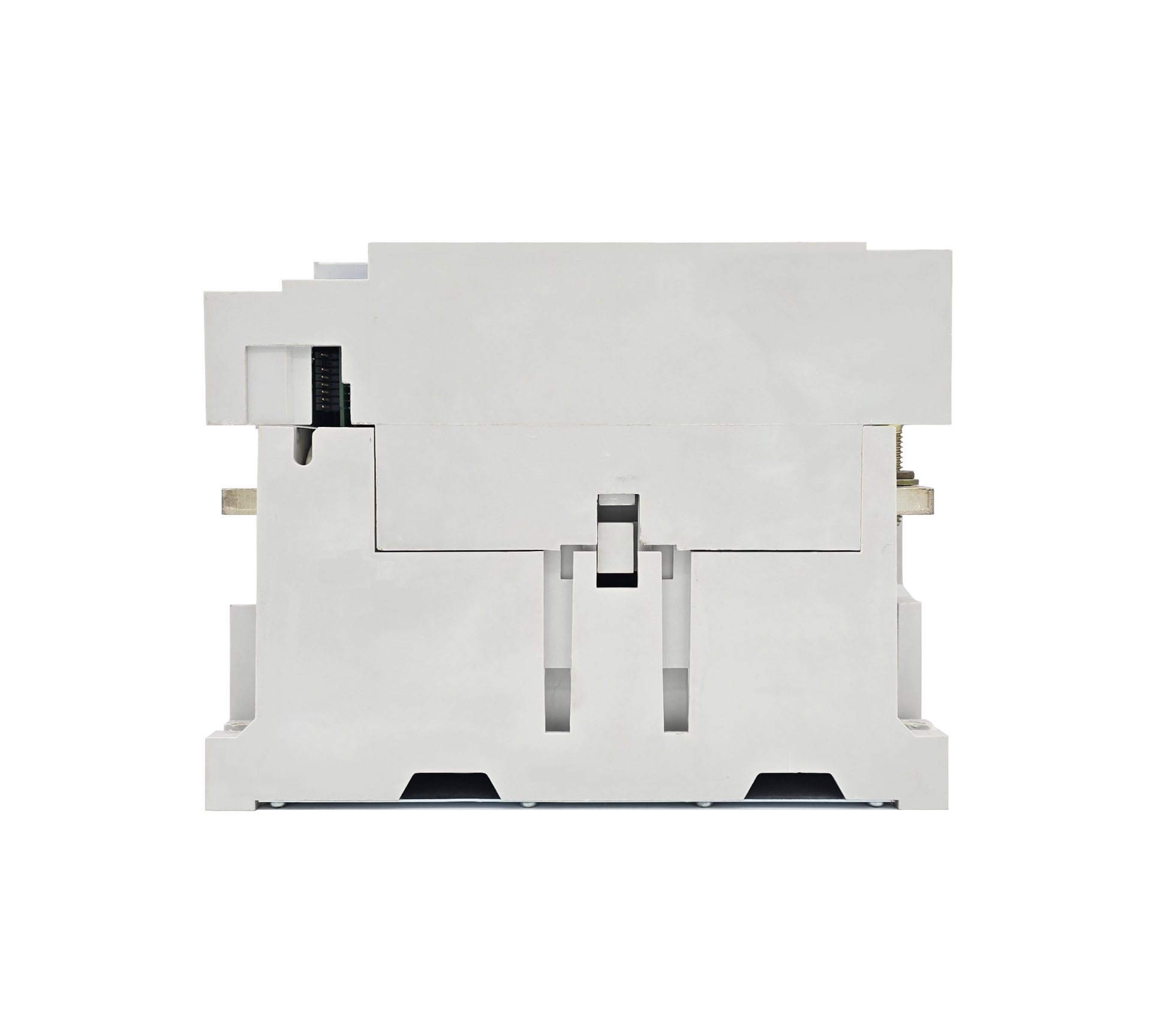

This product image represents a base model and is for identification purposes only.
In stock. Ships within one business day. Reconditioned by AVO certified technicians! Test reports included. Backed by a full one year warranty. The product image shown is for identification purposes only. The item you receive may have cosmetic differences unrelated to function. Such differences may include version, series, frame color or design, lid color or design, label material, label color, label modifications, service stamps, scuffs, scratches, etc. Specs are as follows:
Contactor, Nema Size 6, 540 Amps, 3 Poles, Non-Reversing, 120VAC Coil at 60HZ, Full Voltage 600VAC, Open Style No Enclosure, Advantage Series, Smaller Physical Size Than Other Types, Max HP Ratings: 150 @ 200 Motor Volts AC, 200 @ 230 Motor Volts AC, 400 @ 460/575 Motor Volts AC
Product Description
In stock. Ships within one business day. Reconditioned by AVO certified technicians! Test reports included. Backed by a full one year warranty. The product image shown is for identification purposes only. The item you receive may have cosmetic differences unrelated to function. Such differences may include version, series, frame color or design, lid color or design, label material, label color, label modifications, service stamps, scuffs, scratches, etc. Specs are as follows:
Contactor, Nema Size 6, 540 Amps, 3 Poles, Non-Reversing, 120VAC Coil at 60HZ, Full Voltage 600VAC, Open Style No Enclosure, Advantage Series, Smaller Physical Size Than Other Types, Max HP Ratings: 150 @ 200 Motor Volts AC, 200 @ 230 Motor Volts AC, 400 @ 460/575 Motor Volts AC
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 540 |
| Coil Voltage | 120VAC |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 6 |
| Coil Type | Magnetic |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 150 @ 200 Motor Volts AC, 200 @ 230 Motor Volts AC, 400 @ 460/575 Motor Volts AC |
| Application | Full Voltage |
| Style | Advantage |
| Poles | 3 |
