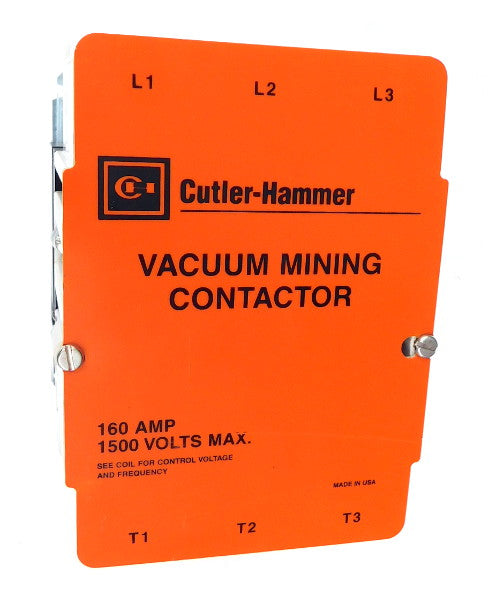

VM160CJZ1
Product Description
Vacuum Motor Contactor, Mining Rated, 160 Amps, 3 Poles, 110/120V AC Coil, Full Voltage 1500VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 50 @ 200VAC, 60 @ 230VAC, 100 @ 380VAC, 125 @ 460VAC, 150 @ 575VAC, 200 @ 800VAC, 400 @ 1500VAC, No Lugs Included.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 160 |
| Coil Voltage | 110/120V AC |
| Phase | 3 |
| Voltage Max | 1500 |
| Enclosure | Open |
| Maximum Ratings | 50 HP @ 200VAC, 60 HP @ 230VAC, 100 HP @ 380VAC, 125 HP @ 460VAC, 150 HP @ 575VAC, 200 HP @ 800VAC, 400 HP @ 1500VAC |
| Terminals | No Lugs Included |
| Poles | 3 |
New Surplus
Qty in Stock: 1
$4,995.00
Certified Reconditioned
Qty in Stock: 1
$3,795.00
