Product Description
Specs are as follows:
E2RM Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Electronic Trip Unit, LS Trip Unit Functions, 1600 Ampere Max at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 480 VAC, 50 Kiloampere @ 600 VAC, 25 Kiloampere @ 1000 VAC, U57 Option Includes: [380-500 VAC UVR Installed, Non LED, Right Pole Mounted, Exiting Right]
ATTENTION: This unit requires a rating plug in order to function. Please contact us to check stock and pricing of rating plugs if you need one installed before ordering.

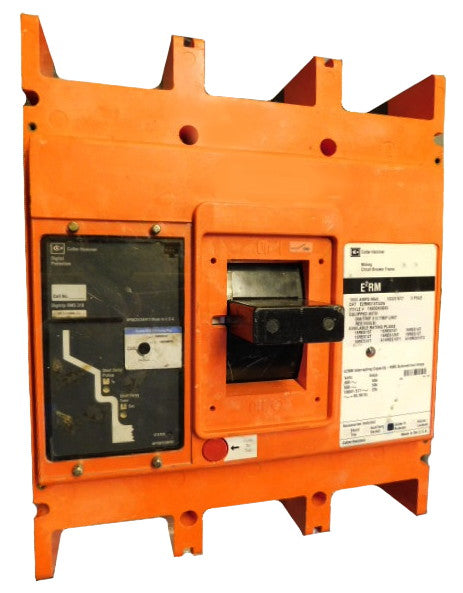

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | U57 Option Includes: [380-500 VAC UVR Installed, Non LED, Right Pole Mounted, Exiting Right] |
| Connection | Bolt On |
| Frame Type | R |
| Amperage | 1600 Max |
| Poles | 3 |
| Voltage Max | 1000 |
| Interrupting Capacity Rating | 65 Kiloampere @ 480 VAC, 50 Kiloampere @ 600 VAC, 25 Kiloampere @ 1000 VAC |
| Trip Setting | 2-8 Times the Continuous Ampere Rating |
| Standard Lug Type |
