E2RM316T32WA12S29

Certified Reconditioned

Qty in Stock: 2

$11,995.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

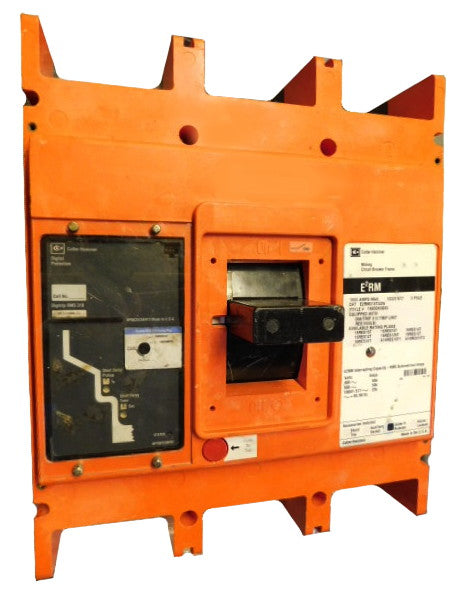

E2RM Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Electronic Trip Unit, LSI Trip Unit Functions, 1600 Ampere Max at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 480 VAC, 50 Kiloampere @ 600 VAC, 25 Kiloampere @ 1000 VAC, Without Terminals Standard, A12 Option Includes: [2-A (Open) 2-B (Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Right], S29 Option Includes: [110-240 VAC Shunt Trip Installed, Right Pole Mounted, Exiting Right]

L - Adjustable Long Delay Pickup (By Adjustable Rating Plug)

S - Adjustable Short Delay Pickup with Fixed Short Delay Time (l2t Response) or Adjustable Short Delay Time (Flat Response)

I - Adjustable Instantaneous Pickup by Setting Short Delay Time to Instantaneous

Follow the links below to order accessories used to create additional configurations for this unit.

1. Auxiliary Switches:
     A2X6RPK
2. Shunt Trips:
     SNT6P11K
3. Undervoltage Releases (UVRs):
     UVH6RP08K

Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Eaton / Cutler Hammer
Warranty One Year
Configuration A12 Option Includes: [2-A (Open) 2-B (Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Right], S29 Option Includes: [110-240 VAC Shunt Trip Installed, Right Pole Mounted, Exiting Right]
Connection Bolt On
Frame Type R
Amperage 1600 Max
Poles 3
Voltage Max 1000
Interrupting Capacity Rating 65 Kiloampere @ 480 VAC, 50 Kiloampere @ 600 VAC, 25 Kiloampere @ 1000 VAC
Trip Setting 2-8 Times the Continuous Ampere Rating
Standard Lug Type Without Terminals Standard
