E2NM312MWA13S10
Product Description
E2NM Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Magnetic-Only Trip Unit, 1200 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 25 Kiloampere @ 1000VAC, A13 Option Includes: [2-A(Open) 2-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], S10 Option Includes: [110-240 VAC Shunt Trip Installed, Left Pole Mounted, Exiting Rear]

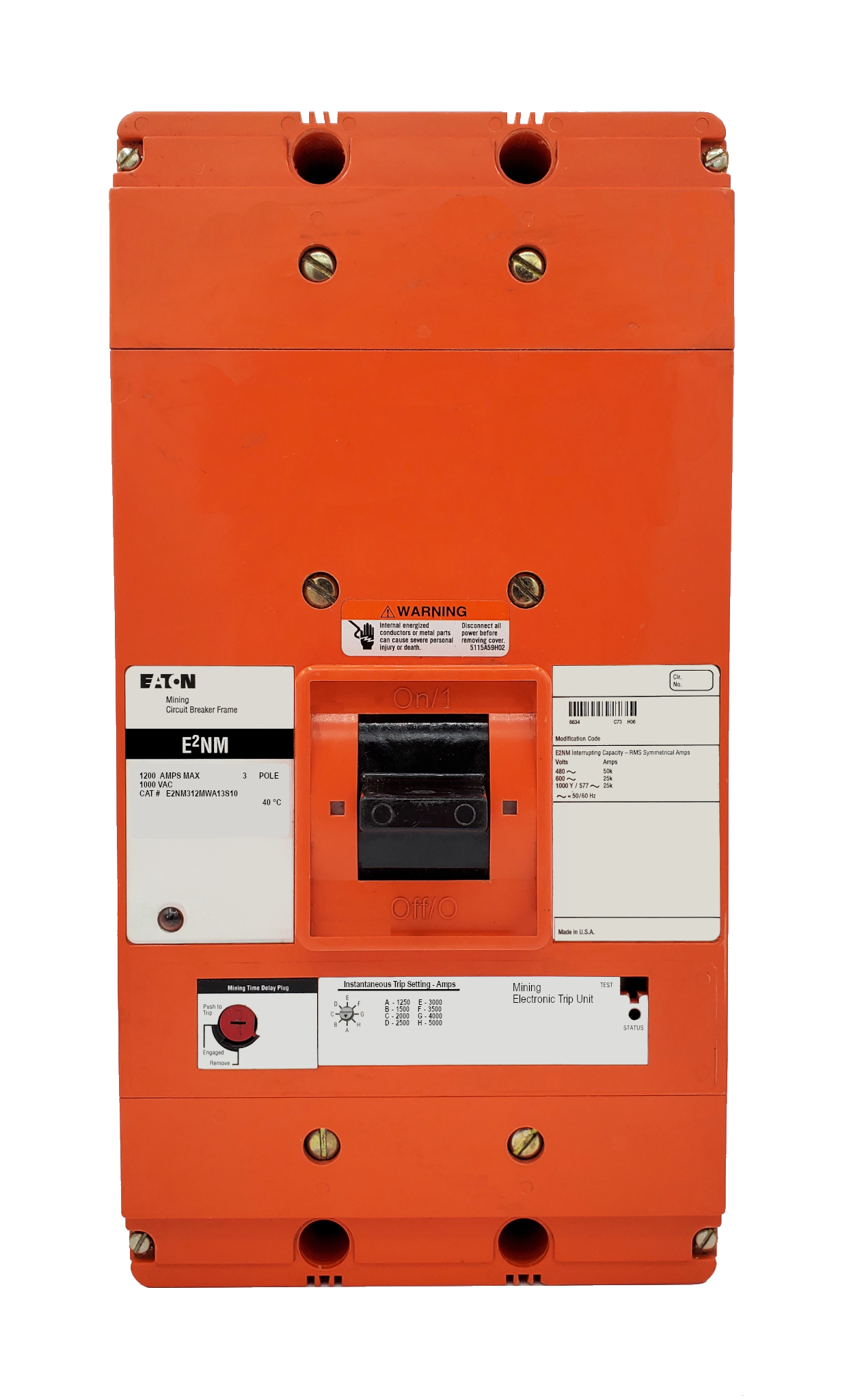

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | A13 Option Includes: [2-A(Open) 2-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], S10 Option Includes: [110-240 VAC Shunt Trip Installed, Left Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | N |
| Amperage | 1200 |
| Poles | 3 |
| Voltage Max | 1000 |
| Interrupting Capacity Rating | 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 25 Kiloampere @ 1000VAC |
| Trip Setting | 1250-5000 |
| Standard Lug Type |
Certified Reconditioned
Qty in Stock: 1
