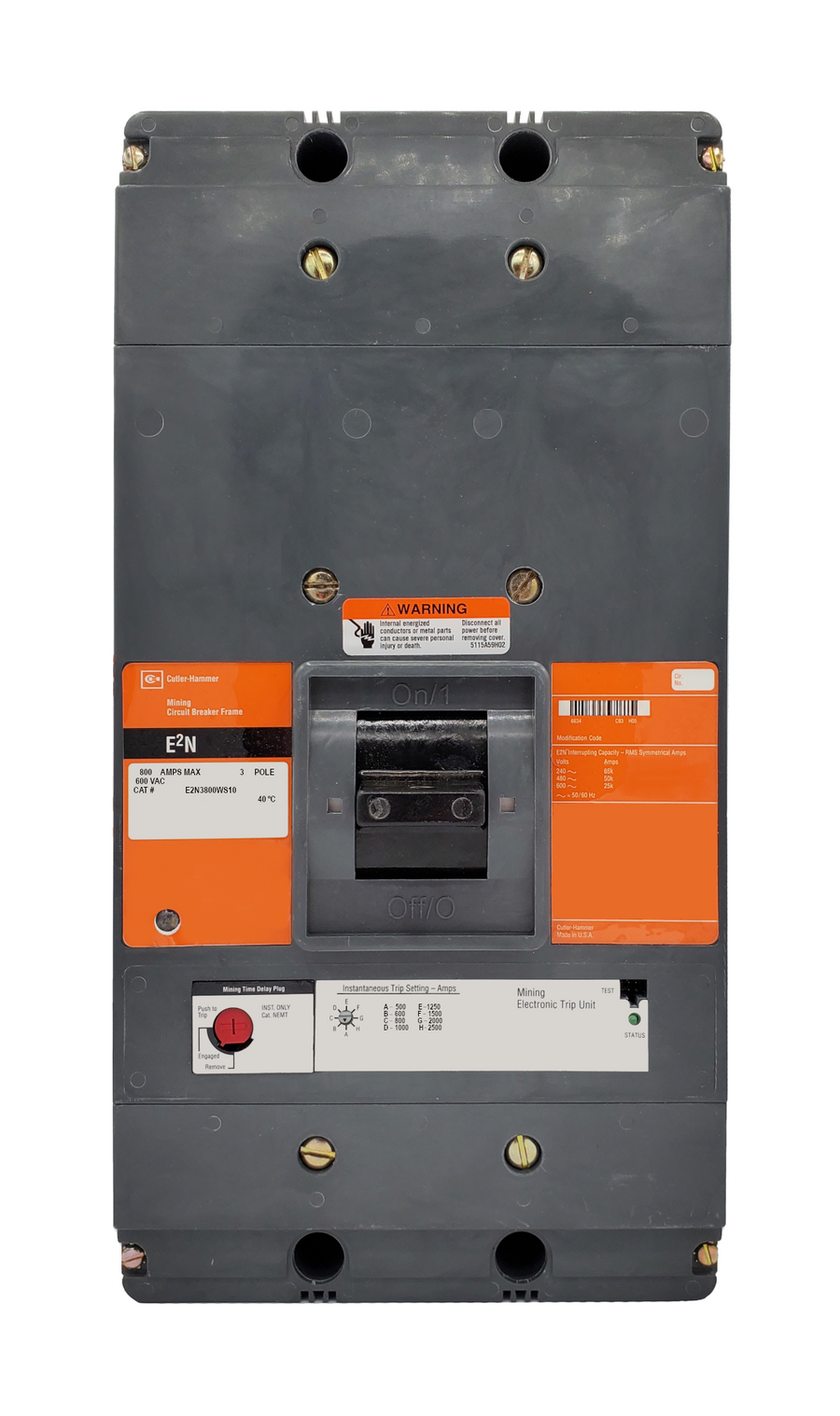

![E2N3800WS10 E2N Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Thermal-Magnetic Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Without Terminals Standard, S10 Option Includes: [110-240 VAC Shunt Trip Installed, Left Pole Mounted, Exiting Rear]. 1 Year Warranty.](http://cdn.shopify.com/s/files/1/0257/0924/8591/products/e2n_5_1_2_385x700.jpg?v=1596137253)
Product Description
Specs are as follows:
E2N Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Thermal-Magnetic Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, Without Terminals Standard, S10 Option Includes: [110-240 VAC Shunt Trip Installed, Left Pole Mounted, Exiting Rear]
Follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches:
2. Shunt Trip Installed (S10):
SNT5LP11K
3. Optional Undervoltage Releases (UVRs):
4. Optional Terminal/Lug Kits:
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | S10 Option Includes: [110-240 VAC Shunt Trip Installed, Left Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | N |
| Amperage | 800 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC |
| Trip Setting | 500-2500 |
| Standard Lug Type | Without Terminals Standard |
