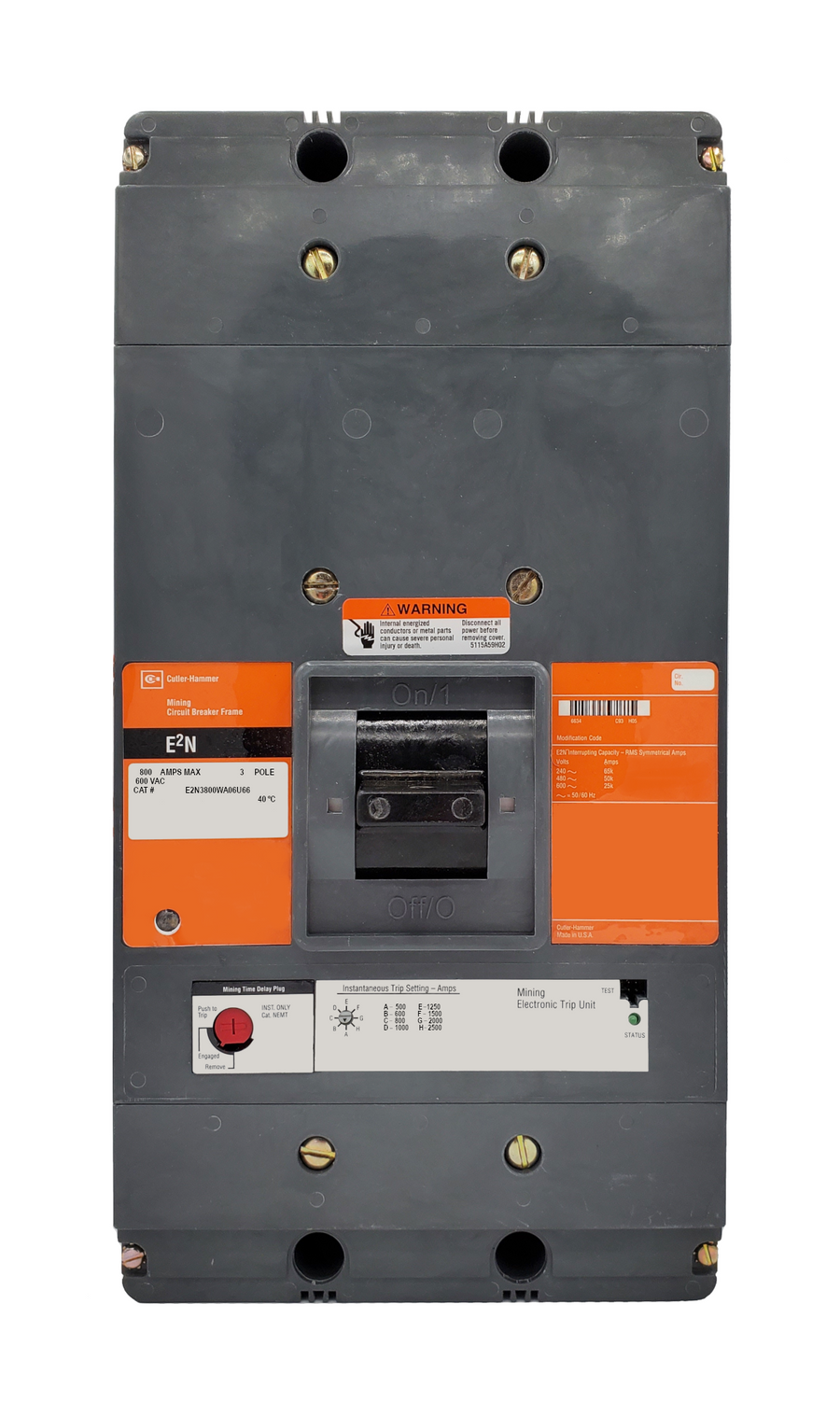

![E2N3800WA06U66 E2N Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Thermal-Magnetic Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear]. 1 Year Warranty.](http://cdn.shopify.com/s/files/1/0257/0924/8591/products/e2n_5_385x700.jpg?v=1596137301)
Product Description
Specs are as follows:
E2N Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Thermal-Magnetic Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear]
Follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switch Installed (A06):
A1X5PK
2. Optional Shunt Trips:
3. Undervoltage Release Installed (U66):
UVM5LP08K
4. Optional Terminal/Lug Kits:
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | N |
| Amperage | 800 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC |
| Trip Setting | 500-2500 |
| Standard Lug Type | Without Terminals Standard |
