E2MEM38002WU66

Certified Reconditioned

Qty in Stock: 1

$6,945.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

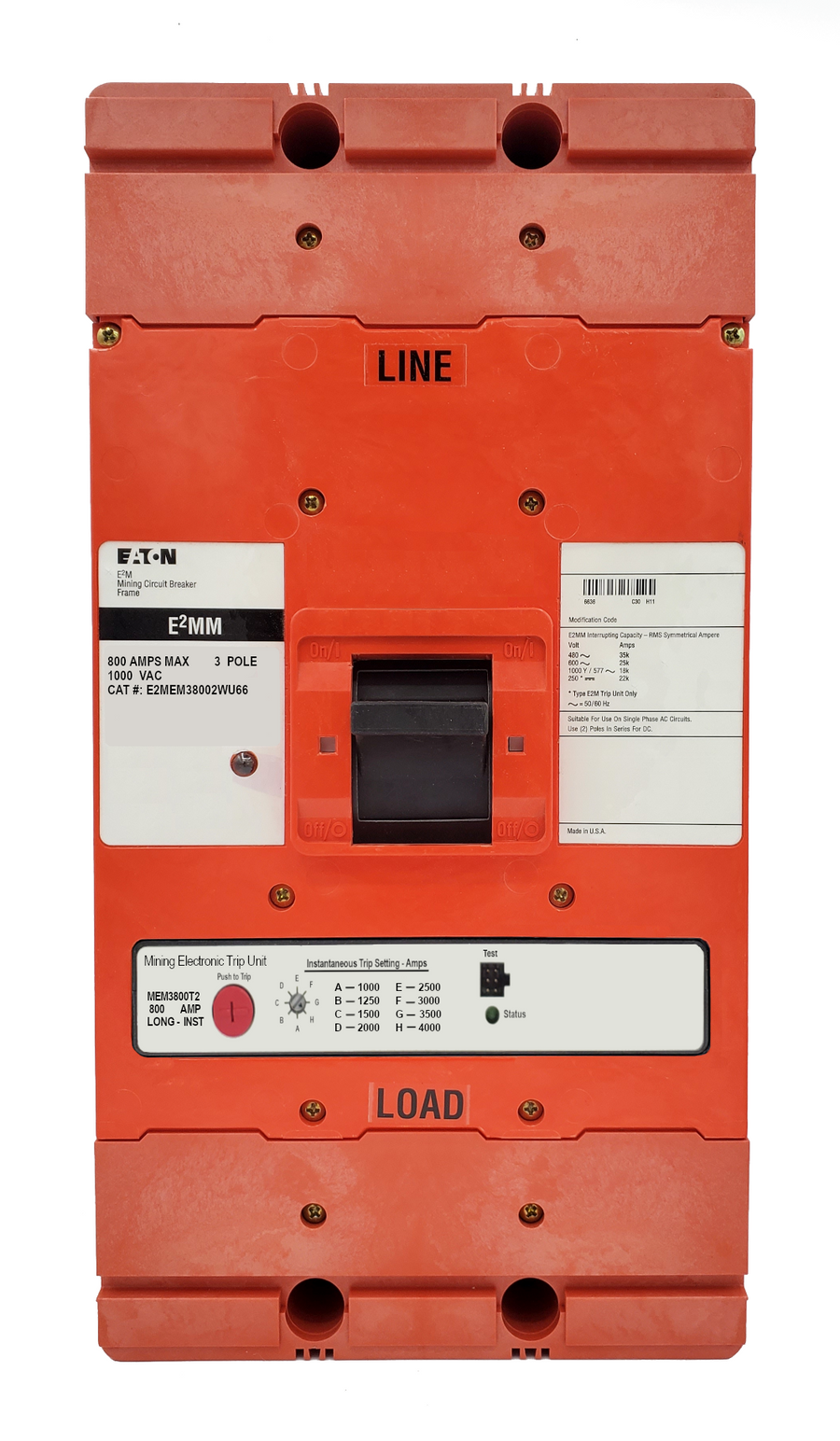

E2M Frame Style, Molded Case Mining Circuit Breaker, Electronic LSI Trip, 800 Ampere at 40 Degree Celsius, 3 Pole, 1000 VAC, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear]

Follow the links below to order accessories used to create additional configurations for this unit.

1. Optional Auxiliary Switches:
2. Optional Shunt Trips:
3. Undervoltage Release Installed (U66):
     UVM4LP08K
4. Optional Terminal/Lug Kits:

Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Eaton / Cutler Hammer
Warranty One Year
Configuration U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear]
Connection
Frame Type M
Amperage 800
Poles 3
Voltage Max 1000 VAC
Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC
Trip Setting 1000-4000
Standard Lug Type Without Terminals Standard
