Product Description
Specs are as follows:

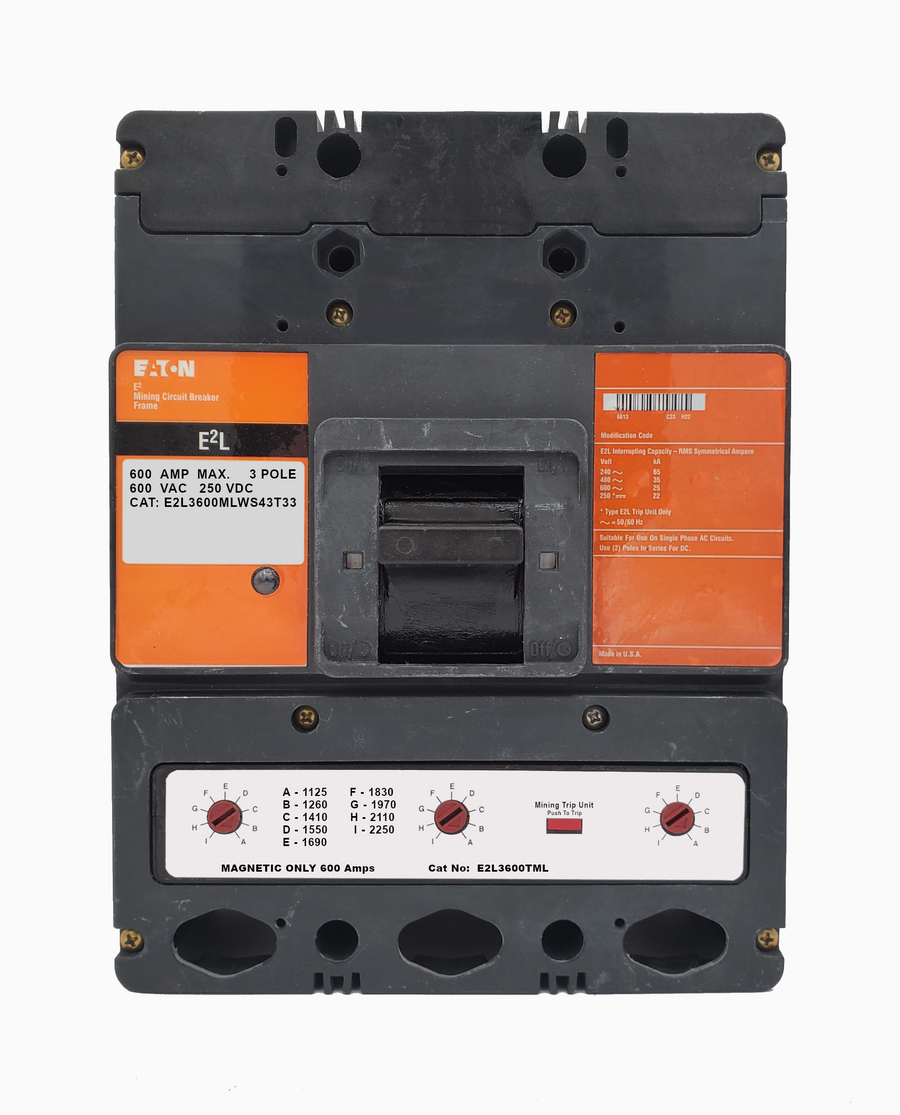

E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, S43 Option Includes: [110-125 VDC Shunt Trip Installed, Left Pole Mounted, Exiting Right], T33 Option Includes: [110-127 VDC UVR Installed, No LED, Right Pole Mounted, Exiting Right]
Follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches:
2. Shunt Trip Installed (S43):
SNT4LP26K
3. Undervoltage Release Installed (T33):
UVH4RP26K
4. Optional Terminal/Lug Kits:
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | S43 Option Includes: [110-125 VDC Shunt Trip Installed, Left Pole Mounted, Exiting Right], T33 Option Includes: [110-127 VDC UVR Installed, No LED, Right Pole Mounted, Exiting Right] |
| Connection | Bolt On |
| Frame Type | L |
| Amperage | 600 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC |
| Trip Setting | 1125-2250 |
| Standard Lug Type | Without Terminals Standard |
