E2L3600MLWA01
Product Description
E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A01 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Left]

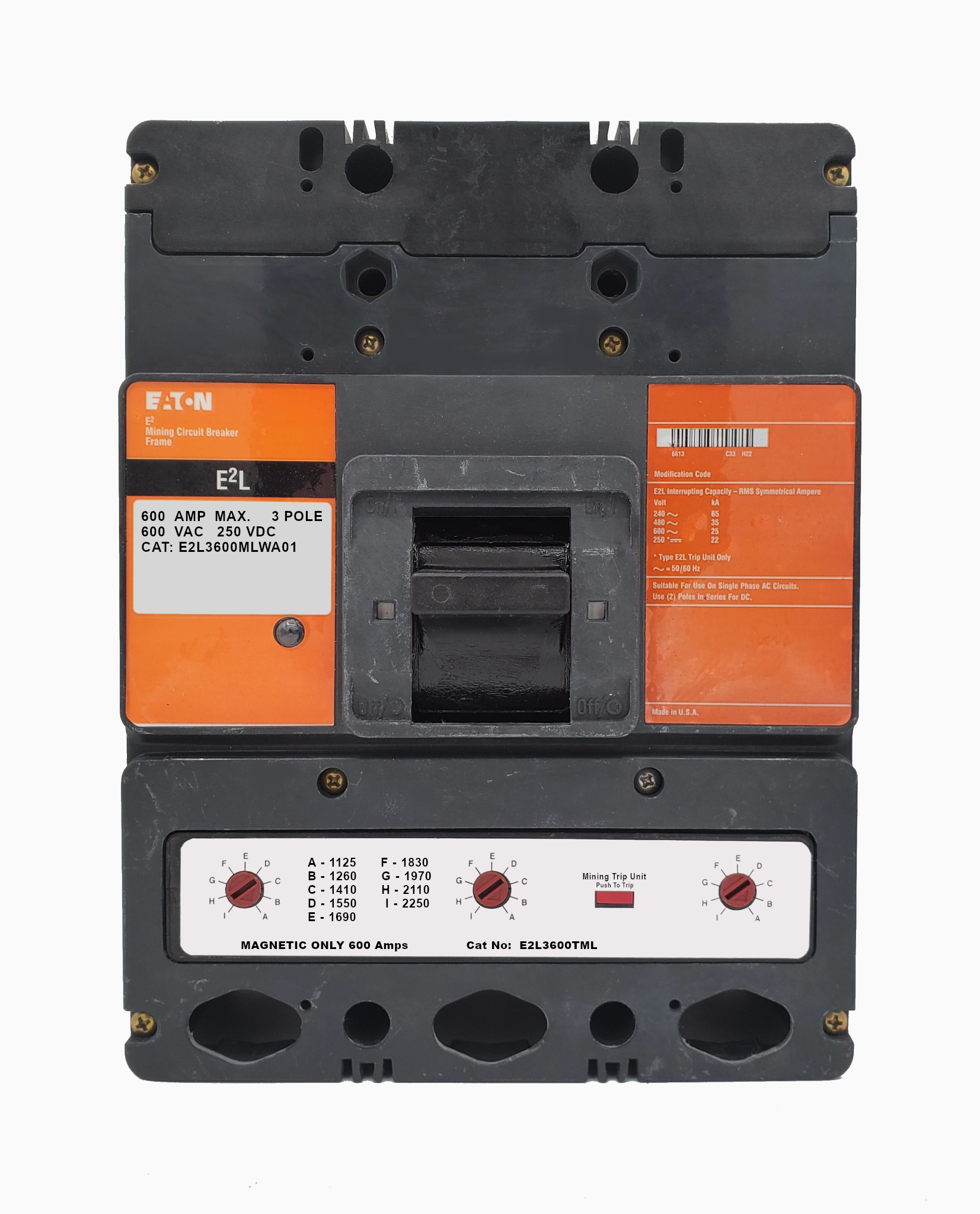

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | A01 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Left] |
| Connection | Bolt On |
| Frame Type | L |
| Amperage | 600 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC |
| Trip Setting | 1125-2250 |
| Standard Lug Type | Without Terminals Standard |
Certified Reconditioned
Qty in Stock: 1
