Follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches:
A1X4PK
A2X4PK
2. Shunt Trips:
SNT4LP05K
SNT4LP11K
SNT4LP26K
3. Undervoltage Releases (UVRs):
UVH4LP08K
UVH4LP11K
UVH4LP26K
4. Terminal/Lug Kits:
3TA401LDK
If a UVR light (LED) is not required, we'd suggest ordering the U18 option to reduce cost and lead time.
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
1. Auxiliary Switches:
A1X4PK
A2X4PK
2. Shunt Trips:
SNT4LP05K
SNT4LP11K
SNT4LP26K
3. Undervoltage Releases (UVRs):
UVH4LP08K
UVH4LP11K
UVH4LP26K
4. Terminal/Lug Kits:
3TA401LDK
If a UVR light (LED) is not required, we'd suggest ordering the U18 option to reduce cost and lead time.
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description
Specs are as follows:

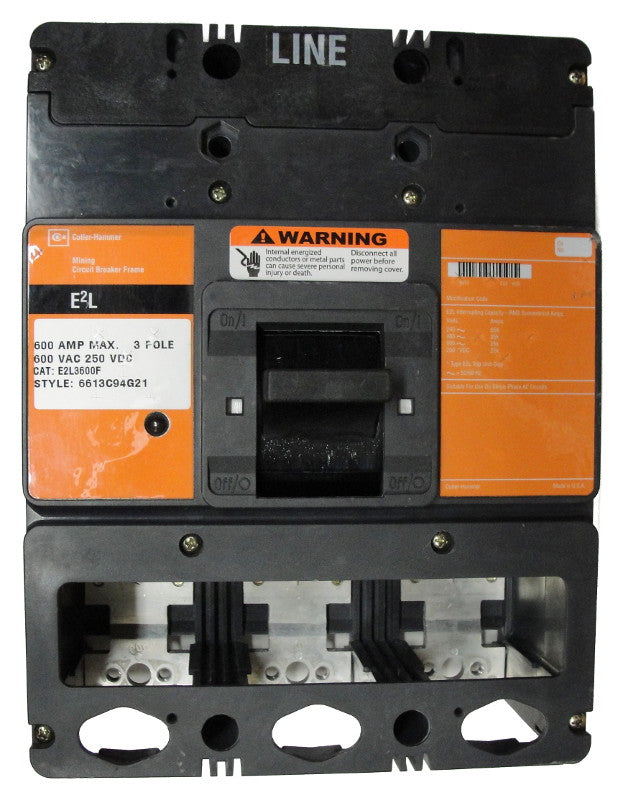

E2L Frame Style, Molded Case Mining Circuit Breaker, Frame Only, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | L |
| Amperage | 600 Max |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC |
