Specs are as follows:
E2KM Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 14 Kiloampere @ 1000VAC, 10 Kiloampere @ 250VDC, Without Terminals Standard, A13 Option Includes: [2-A(Open) 2-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear]

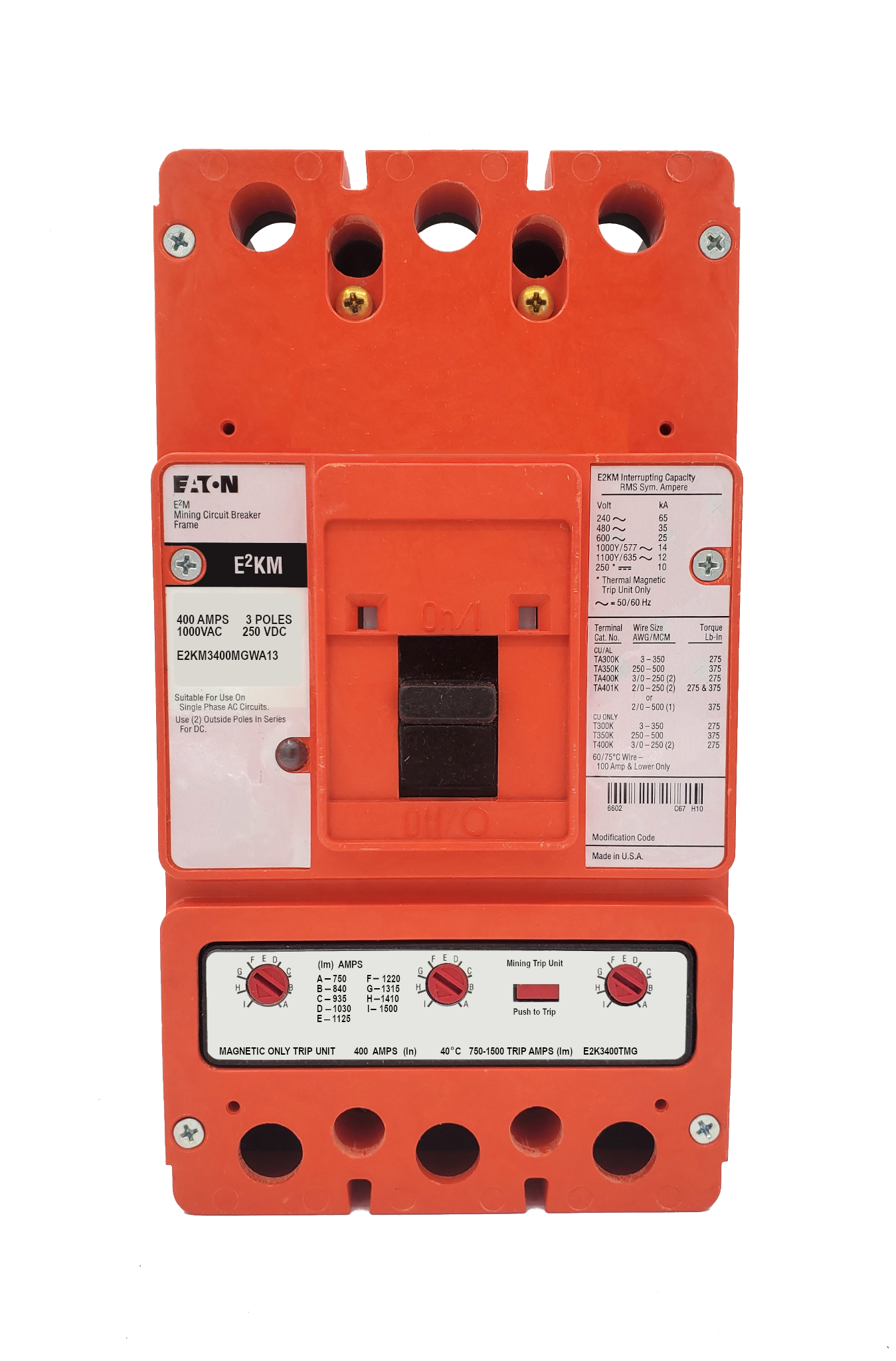

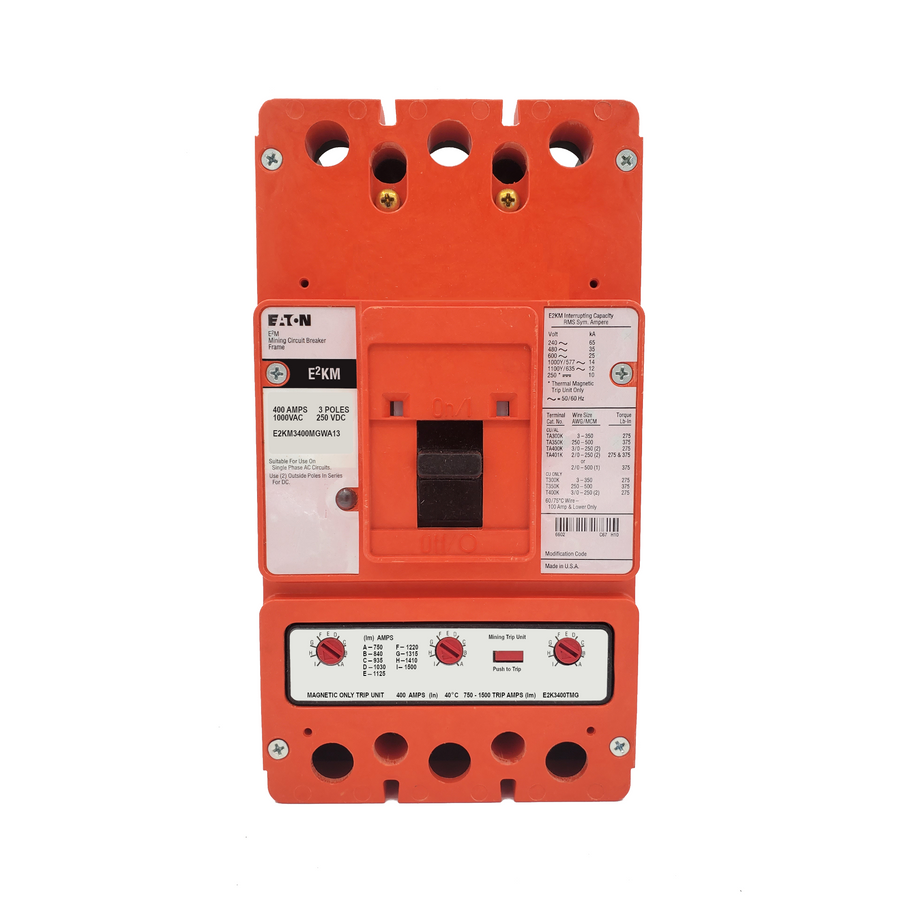

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Configuration||A13 Option Includes: [2-A(Open) 2-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear]|
|Interrupting Capacity Rating||35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 14 Kiloampere @ 1000VAC, 10 Kiloampere @ 250VDC|
|Standard Lug Type||Without Terminals Standard|
