Specs are as follows:

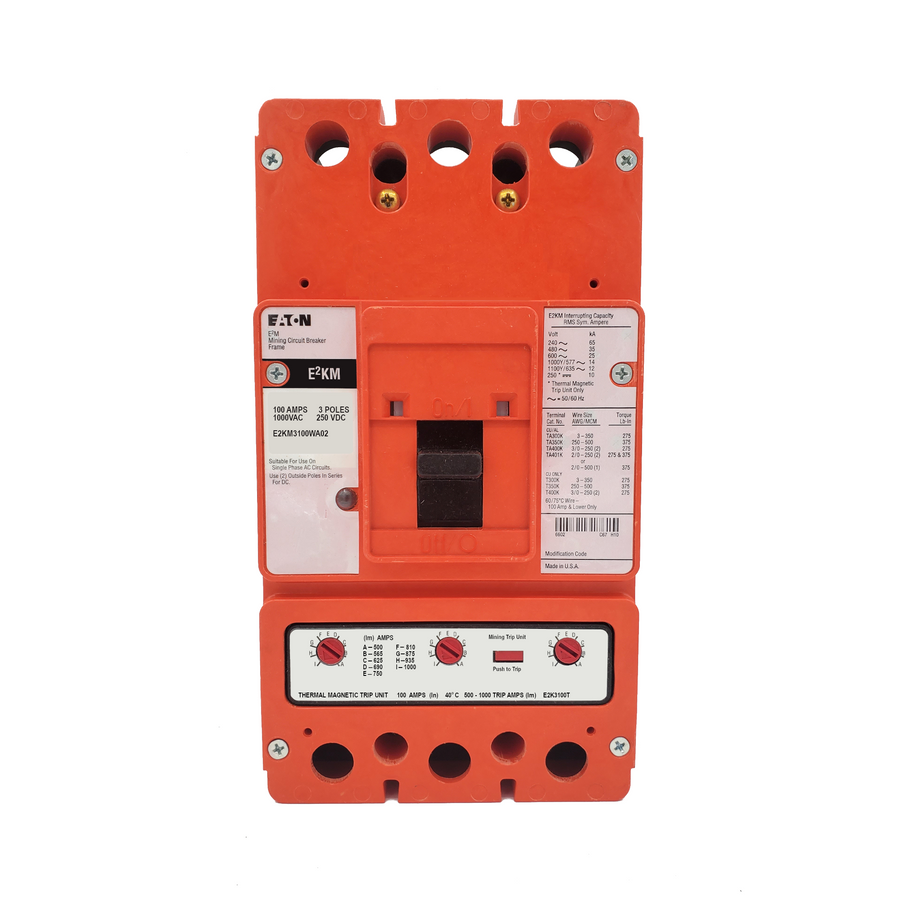

E2KM Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Thermal-Magnetic Trip Unit, 100 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 14 Kiloampere @ 1000VAC, 10 Kiloampere @ 250VDC, Without Terminals Standard, A02 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Rear]
Follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switch Installed (A02):
2. Optional Shunt Trips:
3. Optional Undervoltage Releases (UVRs):
4. Optional Terminal/Lug Kits:
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Configuration||A02 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Rear]|
|Interrupting Capacity Rating||35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 14 Kiloampere @ 1000VAC, 10 Kiloampere @ 250VDC|
|Standard Lug Type||Without Terminals Standard|
