Product Description
Specs are as follows:
E2K Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Long/Instantaneous, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, Without Terminals Standard, A13 Option Includes: [2-A(Open) 2-B(Closed) Auxiliary Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear]

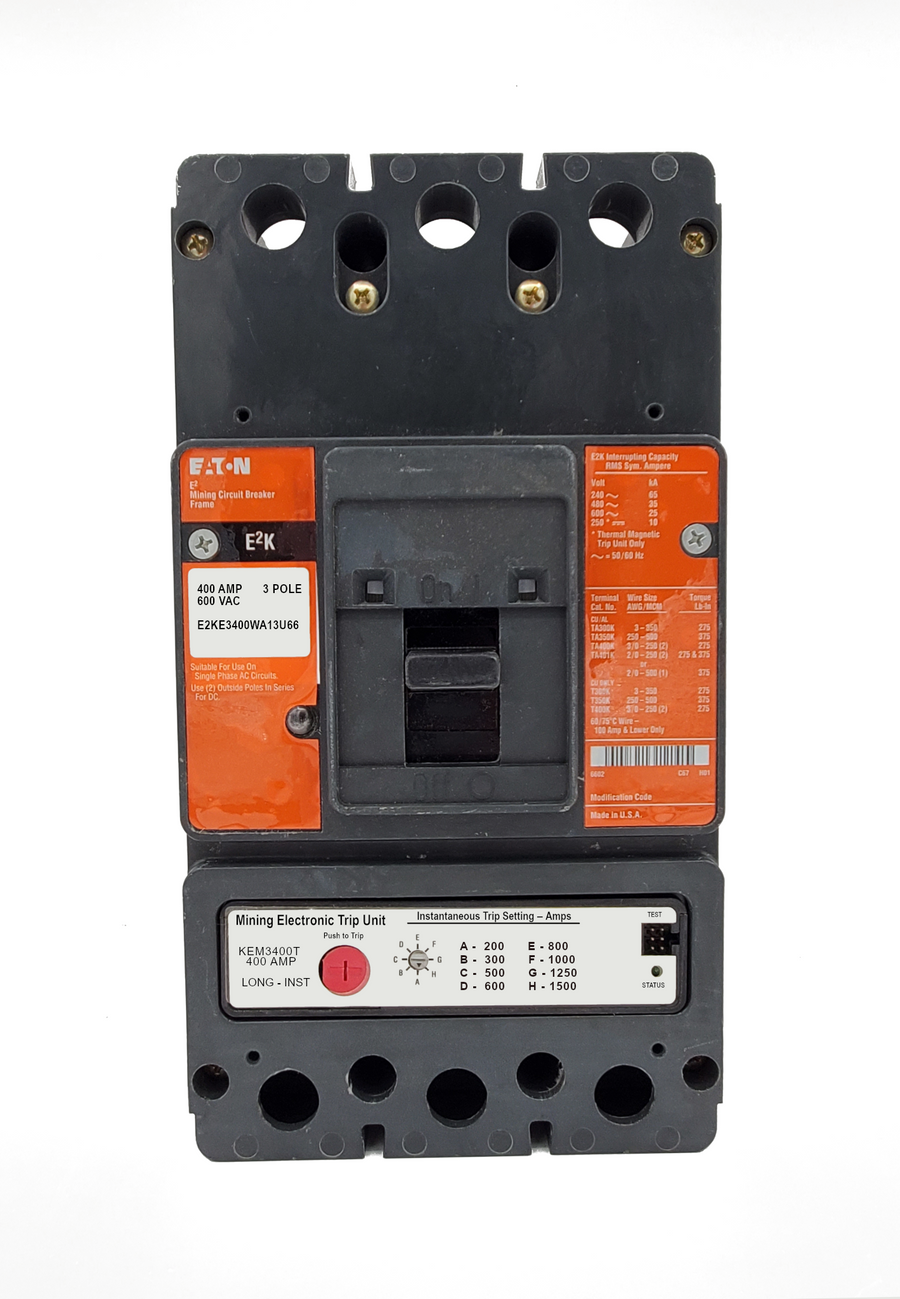

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | A13 Option Includes: [2-A(Open) 2-B(Closed) Auxiliary Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | K |
| Amperage | 400 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC |
| Trip Setting | 200-1500 |
| Standard Lug Type | Without Terminals Standard |
