E2FM100KMU14

Certified Reconditioned

Qty in Stock: 1

$1,545.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

E2FM Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Magnetic Only Trip Unit, 100 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 25 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 1000VAC, 10 Kiloampere @ 250VDC, Line and Load End Terminals Standard, U14 Option Includes: [110-127 VAC UVR Installed, Non LED, Left Pole Mounted, Exiting Rear]

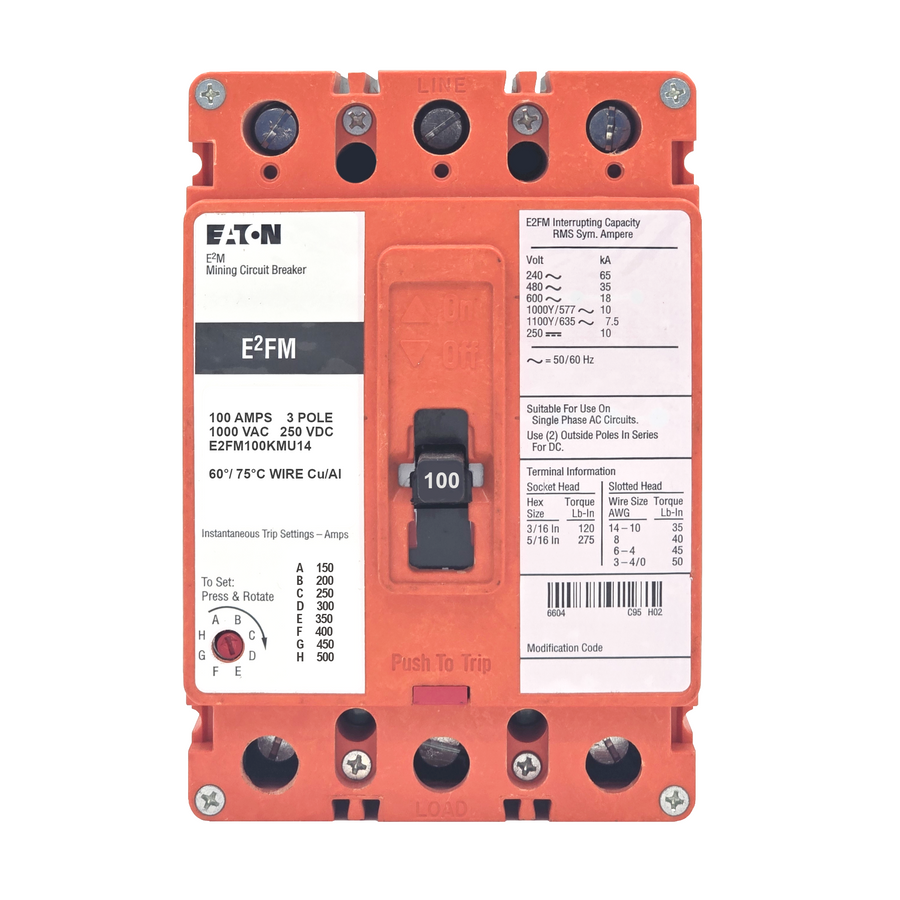

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Eaton / Cutler Hammer
Warranty One Year
Configuration U14 Option Includes: [110-127 VAC UVR Installed, Non LED, Left Pole Mounted, Exiting Rear]
Connection Bolt On
Frame Type F
Amperage 100
Poles 3
Voltage Max 1000
Interrupting Capacity Rating 25 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 1000VAC, 10 Kiloampere @ 250VDC
Trip Setting 150-500
Standard Lug Type Line and Load
