Product Description
Specs are as follows:
E2F Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Magnetic Only Trip Unit, 150 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 25 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, Line and Load End Terminals Standard, U86 Option Includes: [48 VDC UVR Installed, Non LED, Right Pole Mounted, Exiting Rear]

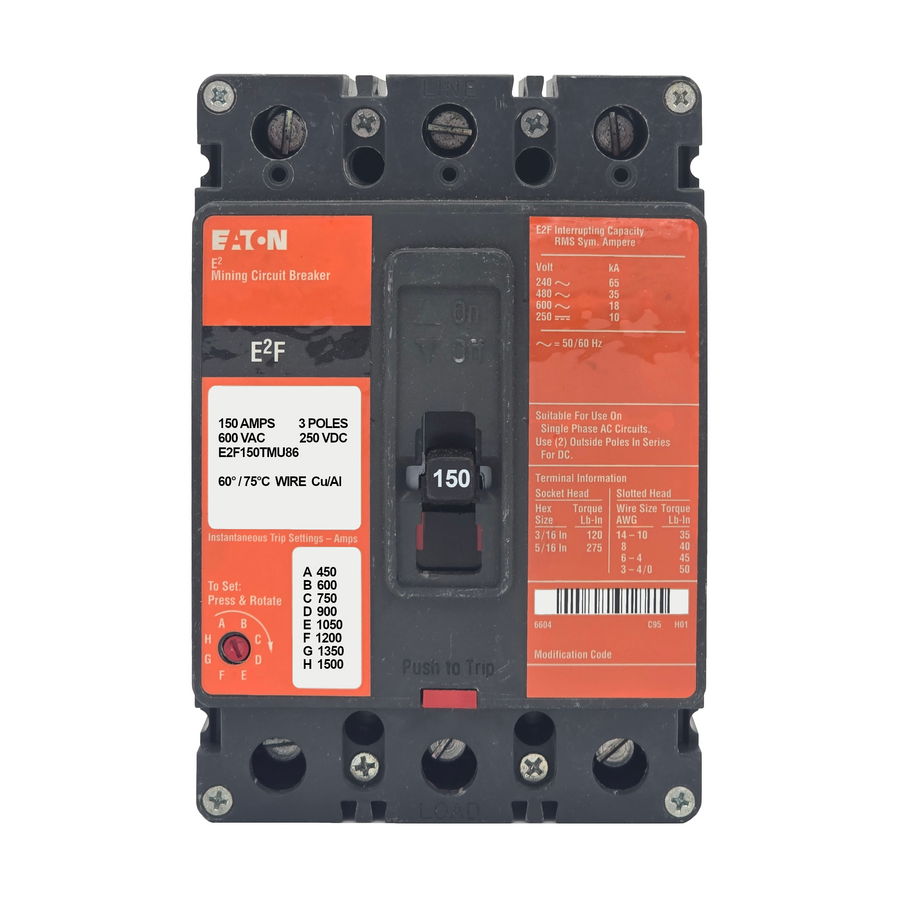

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | U86 Option Includes: [48 VDC UVR Installed, Non LED, Right Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | F |
| Amperage | 150 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 25 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC |
| Trip Setting | 450-1500 |
| Standard Lug Type | Line and Load |
