Specs are as follows:

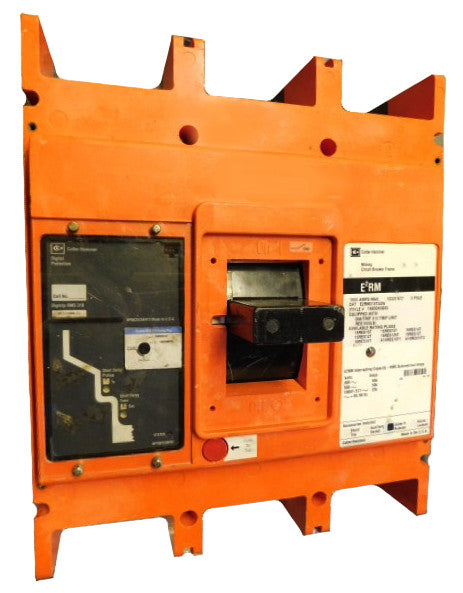

E2RM Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Electronic Trip Unit, LS Trip Unit, 1600 Ampere Max at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 480 VAC, 50 Kiloampere @ 600 VAC, 25 Kiloampere @ 1000 VAC, Without Terminals Standard, U49 Option Includes: [110-127 VAC UVR, Non LED, Right Pole Mounted, Exiting Right]
L - Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S - Adjustable Short Delay Pickup with Fixed Short Delay Time (l2t Response) or Adjustable Short Delay Time (Flat Response)
Follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches:
2. Shunt Trips:
3. Undervoltage Releases (UVRs):
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Configuration||U49 Option Includes: [110-127 VAC UVR, Non LED, Right Pole Mounted, Exiting Right]|
|Interrupting Capacity Rating||65 Kiloampere @ 480 VAC, 50 Kiloampere @ 600 VAC, 25 Kiloampere @ 1000 VAC|
|Trip Setting||2-8 Times the Continuous Ampere Rating|
|Standard Lug Type||Without Terminals Standard|
