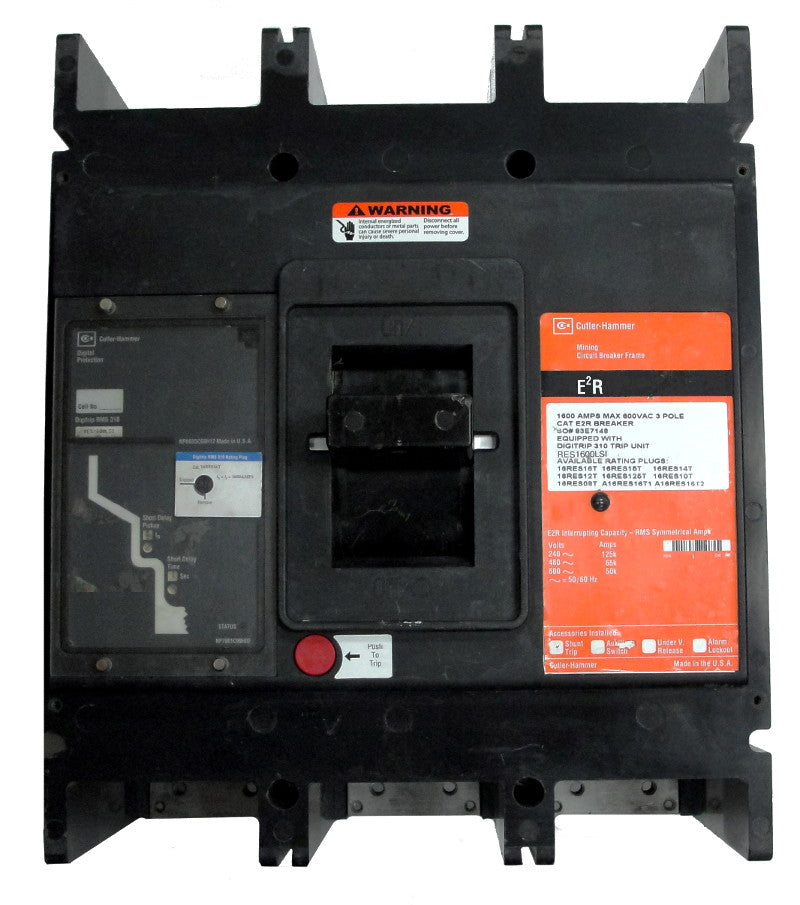

![E2R316T33WA12U49 E2R Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Electronic Trip Unit, LS Trip Unit Functions, 1600 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Without Terminals Standard, A12 Option Includes: [2A-2B Auxiliary, Right Pole Mounted, Exiting Right], U49 Option Includes: [110-127 VAC UVR, Non LED, Right Pole Mounted, Exiting Right]. 1 Year Warranty.](http://breakerhunters.com/cdn/shop/products/e2r_3_2_2_c70f90a5-fecb-469c-aa86-628b45c8099c.jpg?v=1653484845&width=1946)
E2R316WA12U49
Product Description
E2R Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Electronic Trip Unit, 1600 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC. A12 Option Includes: [2-A (Open) 2-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Right], U49 Option Includes: [110-127 VAC UVR Installed, Non LED, Right Pole Mounted, Exiting Right]
ATTENTION: This unit requires a rating plug in order to function. Please contact us to check stock and pricing of rating plugs if you need one installed before ordering.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | A12 Option Includes: [2-A (Open) 2-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Right], U49 Option Includes: [110-127 VAC UVR Installed, Non LED, Right Pole Mounted, Exiting Right] |
| Connection | Bolt On |
| Frame Type | R |
| Amperage | 1600 Max |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 125 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC |
| Trip Setting | 2-8 Times the Continuous Ampere Rating |
| Standard Lug Type |
Certified Reconditioned
Qty in Stock: 1
