E2NM3800MW

Certified Reconditioned

Qty in Stock: 1

$5,625.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

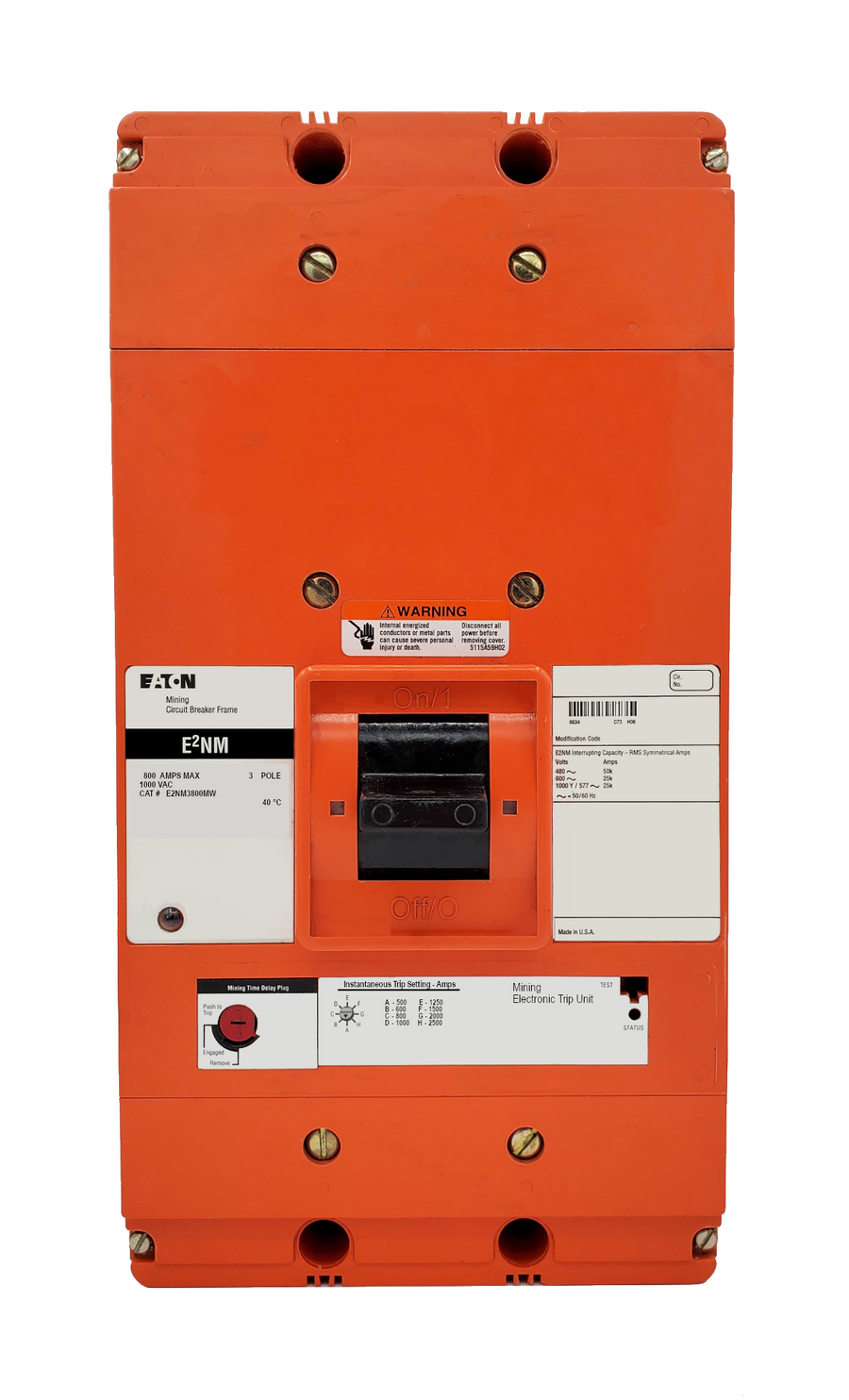

E2NM Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Magnetic-Only Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 25 Kiloampere @ 1000VAC, Without Terminals Standard.

Follow the links below to order accessories used to create additional configurations for this unit.

1. Optional Auxiliary Switches:
2. Optional Shunt Trips:
3. Optional Undervoltage Releases (UVRs):
4. Optional Terminal/Lug Kits:

Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Eaton / Cutler Hammer
Warranty One Year
Connection Bolt On
Frame Type N
Amperage 800
Poles 3
Voltage Max 1000
Interrupting Capacity Rating 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 25 Kiloampere @ 1000VAC
Trip Setting 500-2500
Standard Lug Type Without Terminals Standard
