Product Description
Specs are as follows:
E2NM Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Thermal-Magnetic Trip Unit, 1200 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 25 Kiloampere @ 1000VAC, U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear].

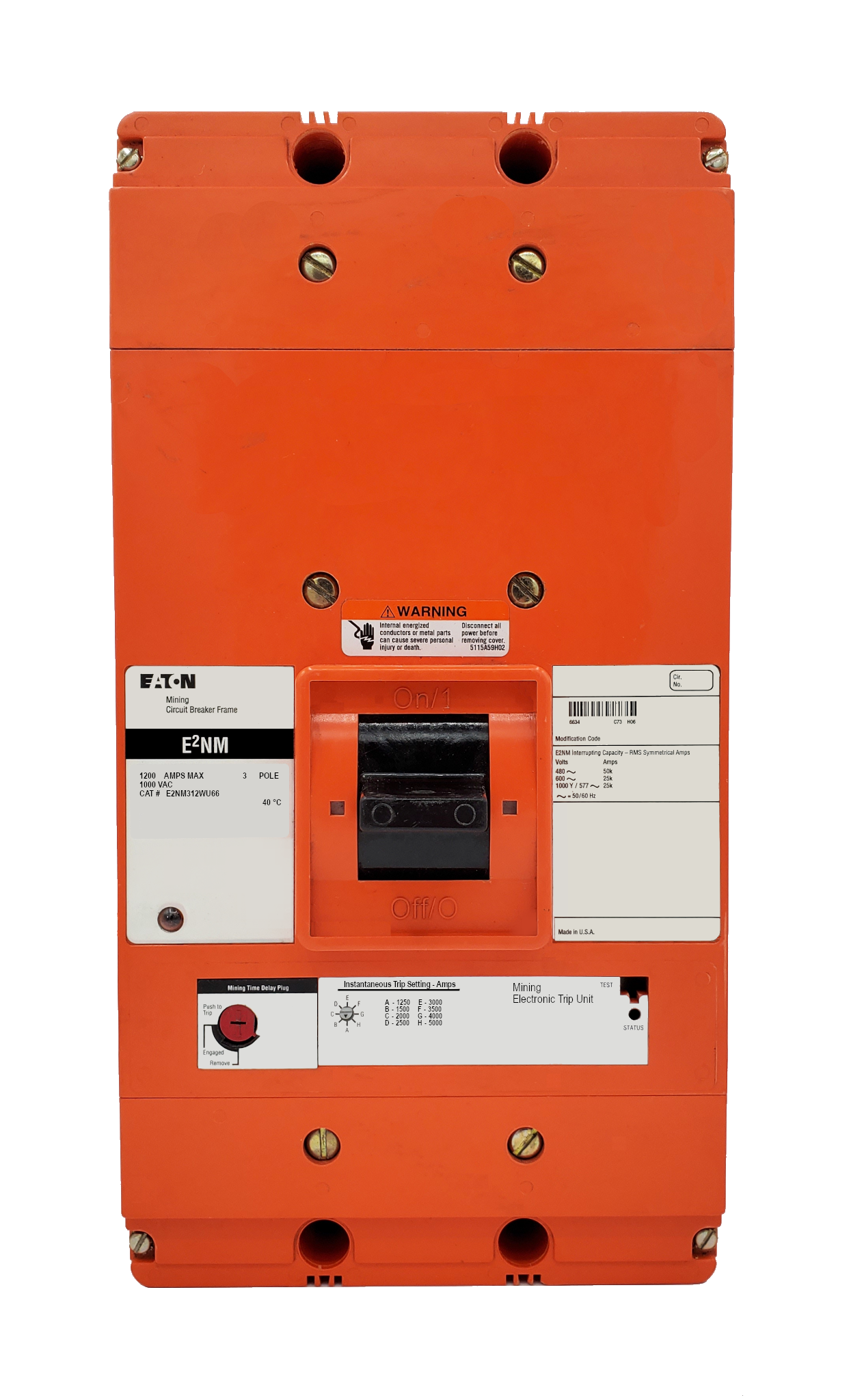

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Eaton / Cutler Hammer |
---|---|
Warranty | One Year |
Configuration | U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] |
Connection | Bolt On |
Frame Type | N |
Amperage | 1200 |
Poles | 3 |
Voltage Max | 1000 |
Interrupting Capacity Rating | 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 25 Kiloampere @ 1000VAC |
Trip Setting | 1250-5000 |
Standard Lug Type |
