E2MM3800WU66
Product Description
E2M Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Thermal-Magnetic Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC, U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear], Without Terminals Standard

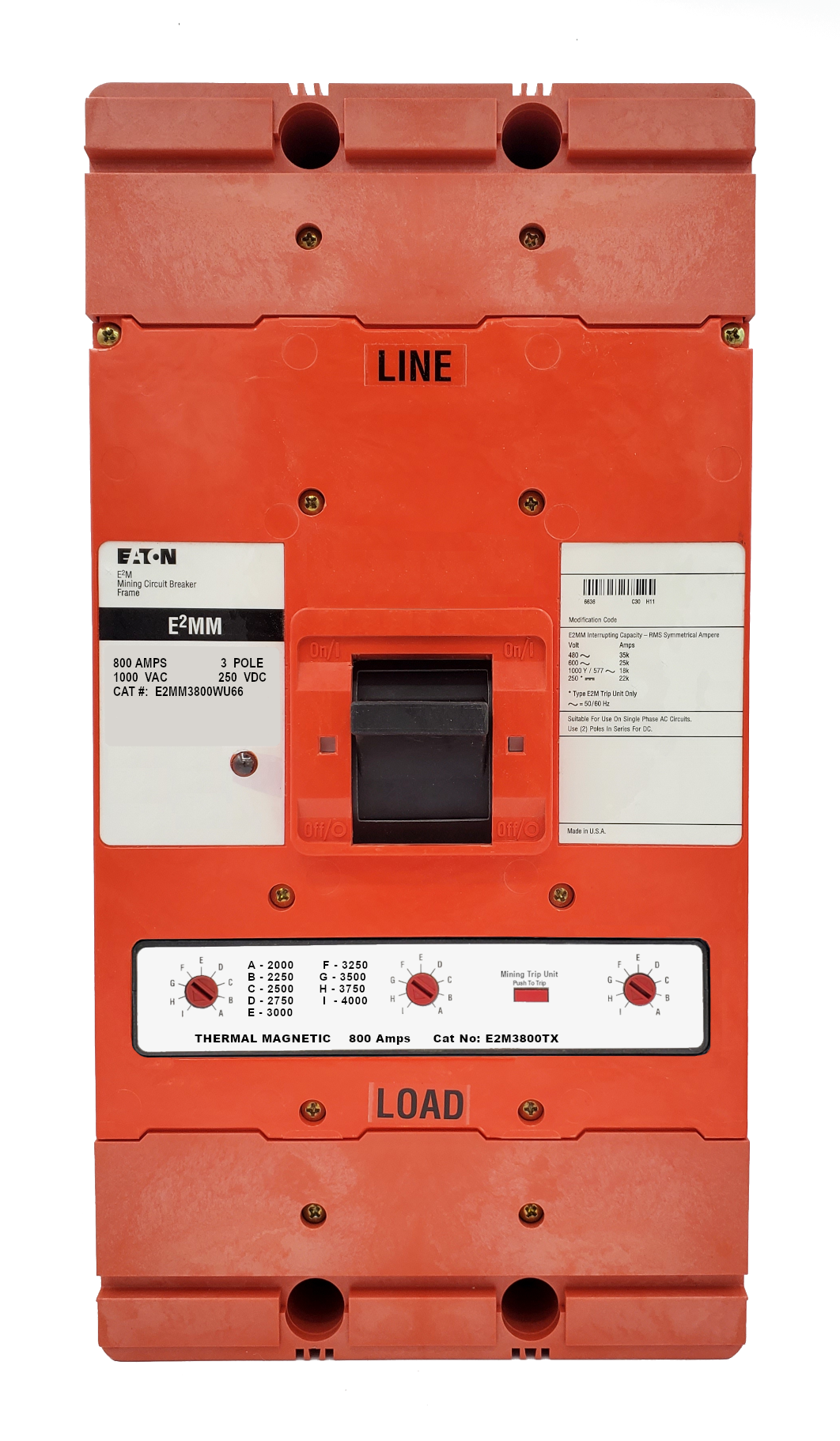

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | M |
| Amperage | 800 |
| Poles | 3 |
| Voltage Max | 1000 VAC |
| Interrupting Capacity Rating | 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC |
| Trip Setting | 2000-4000 |
| Standard Lug Type | Without Terminals Standard |
Certified Reconditioned
Qty in Stock: 1
