Product Description
Specs are as follows:
E2M Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 / 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, A13 Option Includes: [2-A(Open) 2-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], Without Terminals Standard

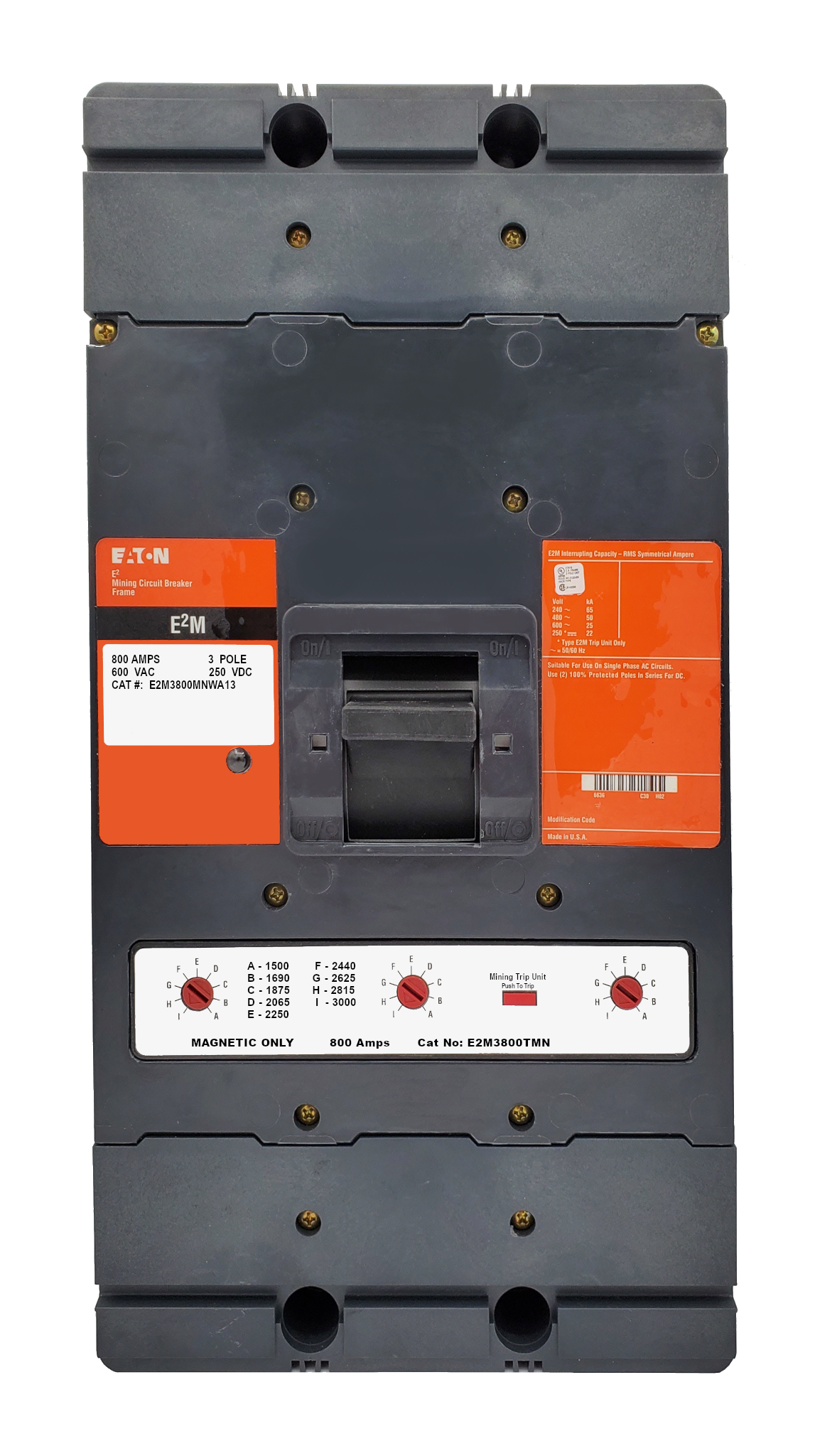

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Eaton / Cutler Hammer |
---|---|
Warranty | One Year |
Configuration | A13 Option Includes: [2-A(Open) 2-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear] |
Connection | Bolt On |
Frame Type | M |
Amperage | 800 |
Poles | 3 |
Voltage Max | 600 VAC |
Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 / 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC |
Trip Setting | 1500-3000 |
Standard Lug Type | Without Terminals Standard |
