E2M3600WA06
Product Description

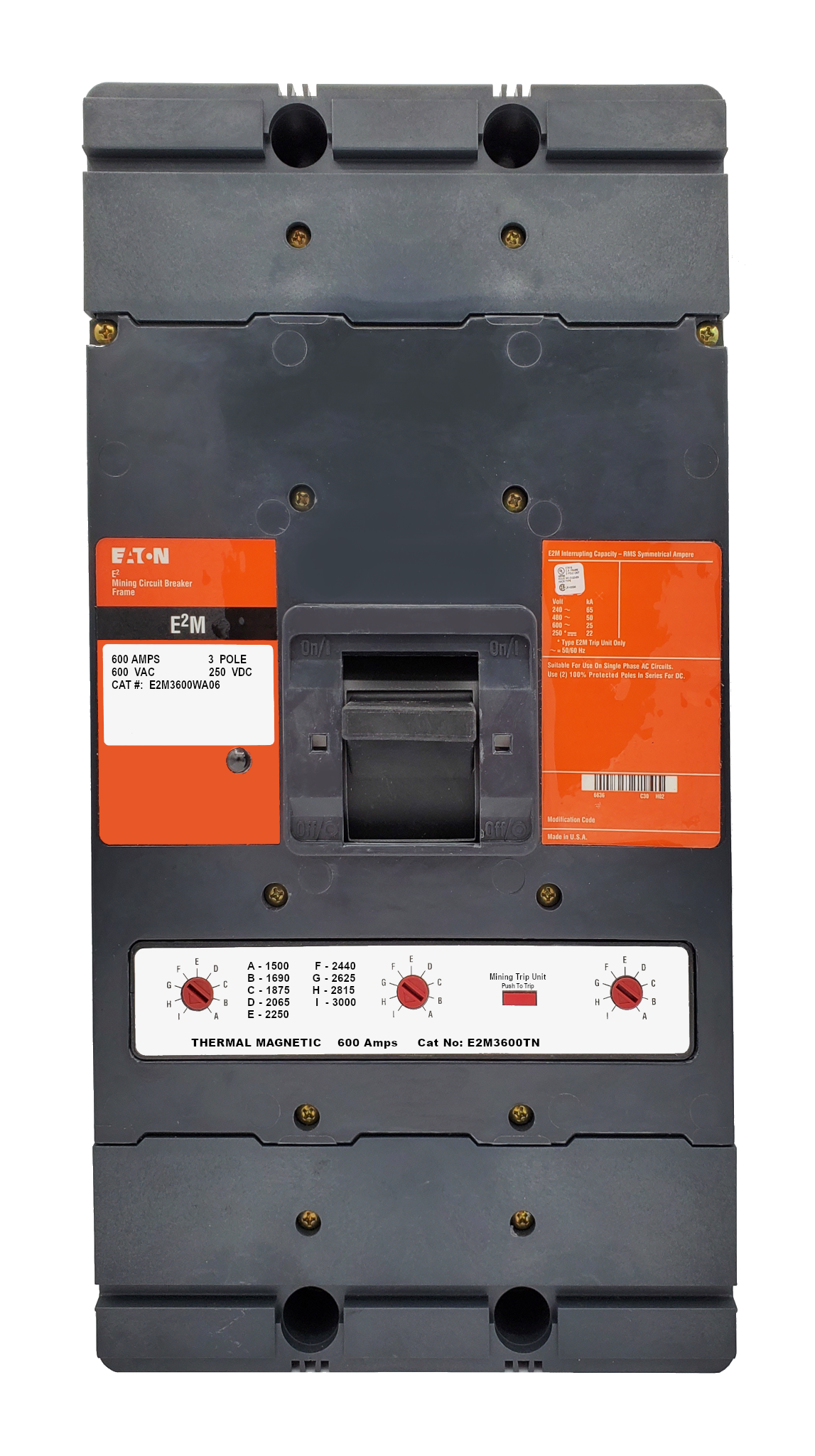

E2M Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Thermal-Magnetic Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 / 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], Without Terminals Standard
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | M |
| Amperage | 600 |
| Poles | 3 |
| Voltage Max | 600 VAC |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 / 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC |
| Trip Setting | 1500-3000 |
| Standard Lug Type | Without Terminals Standard |
Certified Reconditioned
Qty in Stock: 1
