Specs are as follows:
E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Only Trip Unit, Long/Instantaneous, 300 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, U66 Option Includes: [110-127VAC UVR Installed, Left Pole Mounted, Exiting Rear]

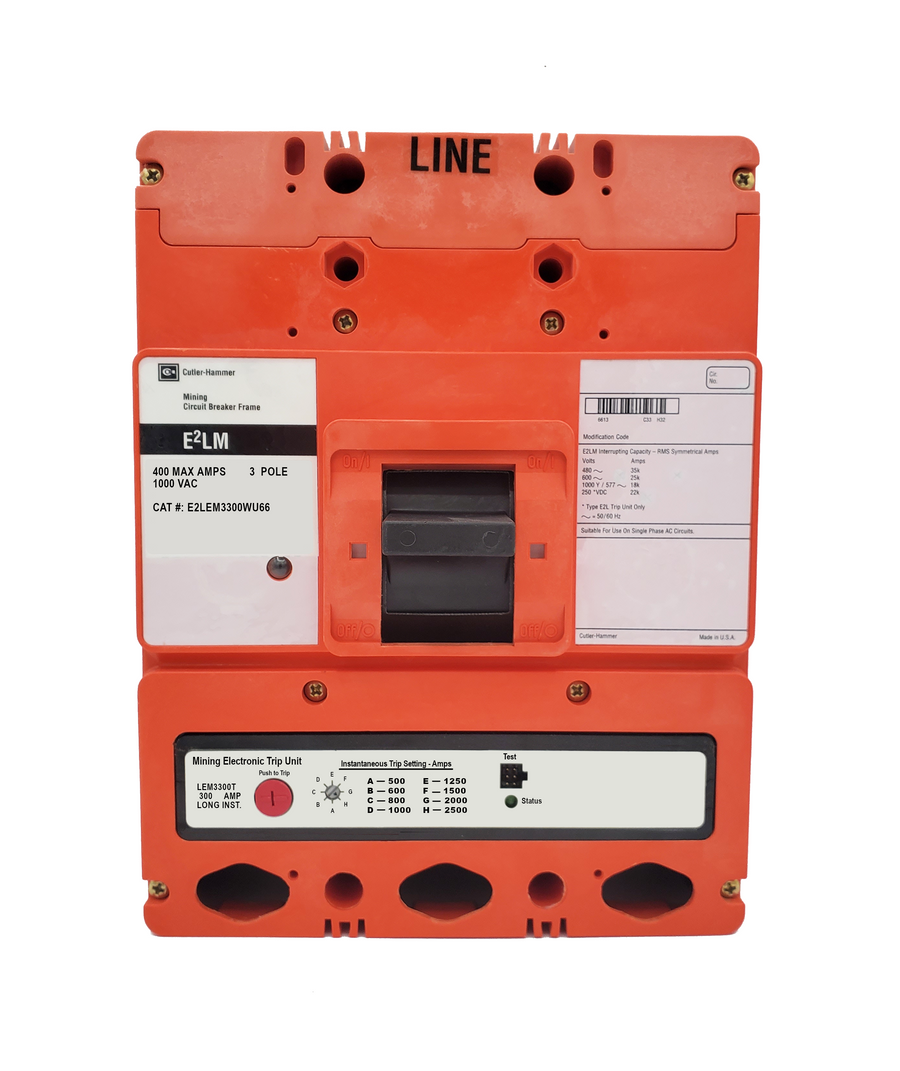

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Configuration||U66 Option Includes: [110-127VAC UVR Installed, Left Pole Mounted, Exiting Rear]|
|Voltage Max||1000 VAC|
|Interrupting Capacity Rating||35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC|
|Standard Lug Type||Without Terminals Standard|
