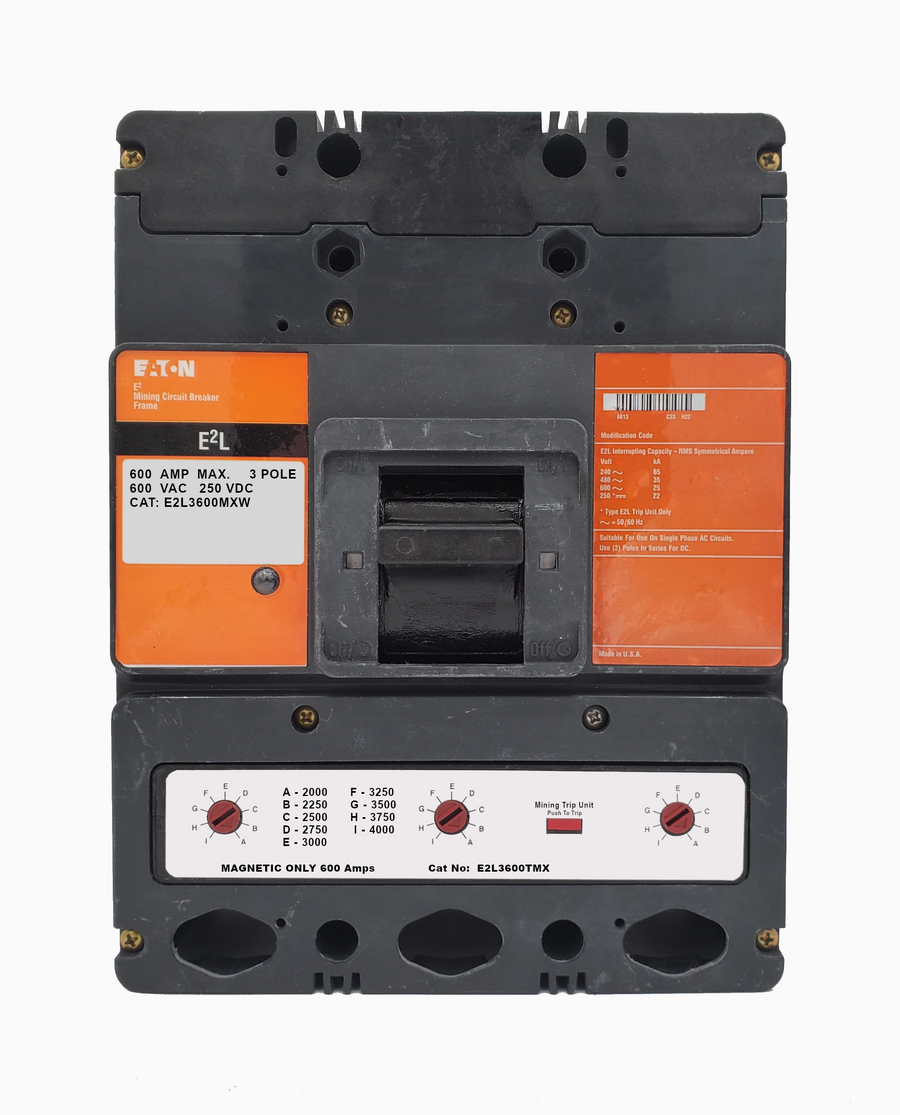

![E2L3600MXW E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, U18 (Without LED) and U66 (With LED) Options Includes: [110-127VAC UVR Installed, Right Pole Mounted, Exiting Rear]. 1 Year Warranty.](http://cdn.shopify.com/s/files/1/0257/0924/8591/products/e2l_20_541x700.jpg?v=1597691781)
Follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches:
A1X4PK
A2X4PK
2. Shunt Trips:
SNT4LP05K
SNT4LP11K
SNT4LP26K
3. Undervoltage Releases (UVRs):
UVH4LP08K
UVH4LP11K
UVH4LP26K
4. Terminal/Lug Kits:
3TA401LDK
If a UVR light (LED) is not required, we'd suggest ordering the U18 option to reduce cost and lead time.
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description
E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, U18 (Without LED) and U66 (With LED) Options Includes: [110-127VAC UVR Installed, Right Pole Mounted, Exiting Rear]
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | |
| Connection | |
| Frame Type | L |
| Amperage | 600 |
| Poles | 3 |
| Voltage Max | 600 VAC |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC |
| Trip Setting | 2000-4000 |
| Standard Lug Type | Without Terminals Standard |
