Product Description
E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, C10 Option Includes: [2A2B and 1 Make/1Break Auxiliary Bell Alarm Combination, Exiting Same Side], T05 Option Includes: [24 VDC UVR, Left Pole Mounted, Exiting Same Side], Without Terminals Standard.

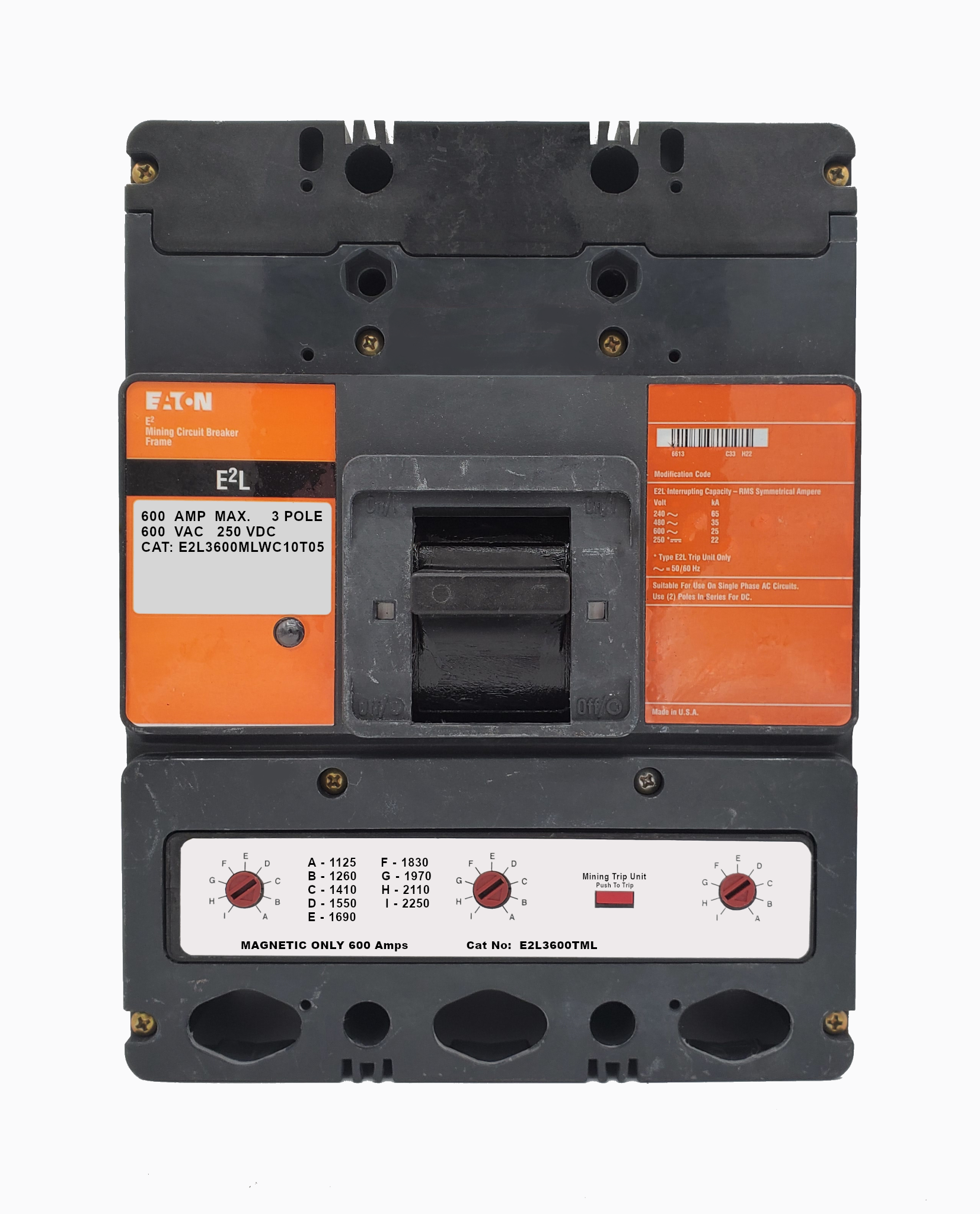

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | C10 Option Includes: [2A2B and 1 Make/1Break Auxiliary Bell Alarm Combination, Exiting Same Side], T05 Option Includes: [24 VDC UVR, Left Pole Mounted, Exiting Same Side] |
| Connection | Bolt On |
| Frame Type | L |
| Amperage | 600 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC |
| Trip Setting | 1125-2250 |
| Standard Lug Type | Without Terminals Standard |
