E2KM3400MJWA02D09
Product Description
E2KM Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 14 Kiloampere @ 1000VAC, 10 Kiloampere @ 250VDC, A02 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Rear], D09 Option Includes: Metric Line and Load Terminal Kit.

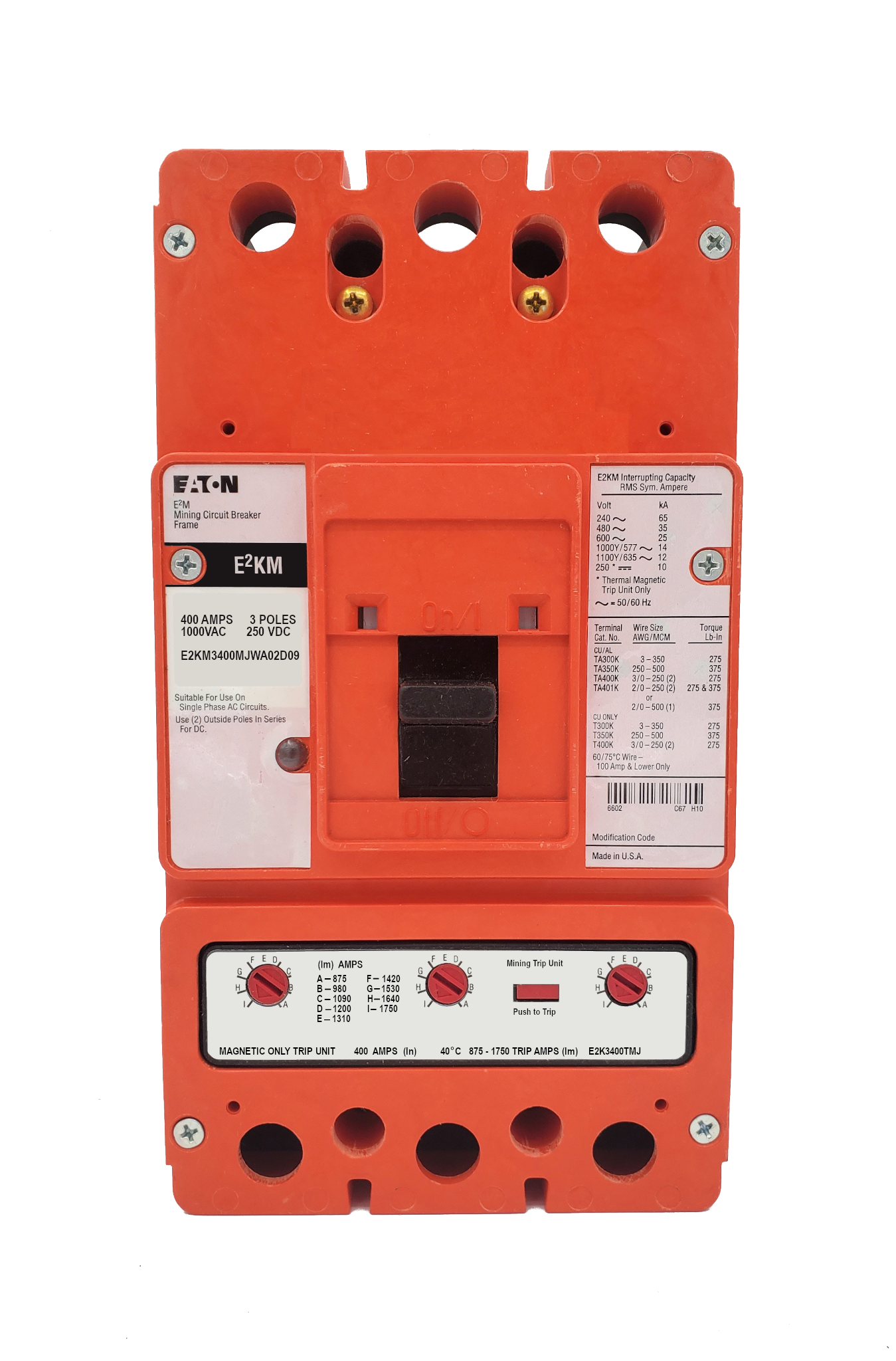

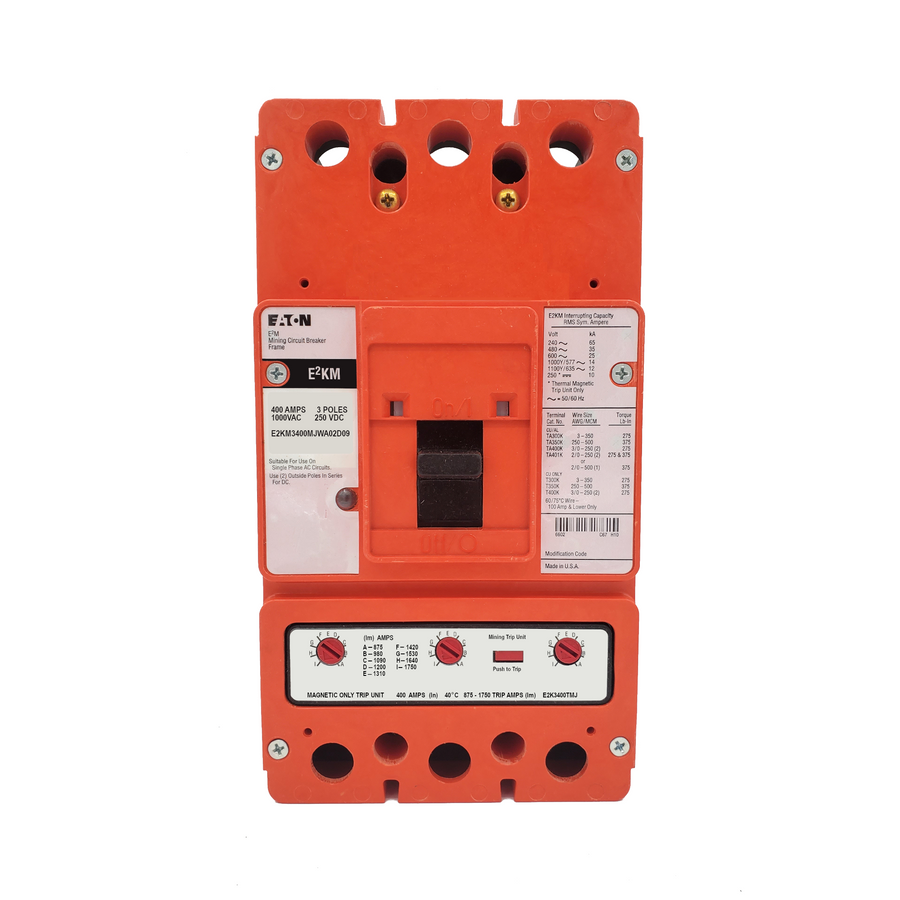

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | A02 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Rear], D09 Option Includes: Metric Line and Load Terminal Kit |
| Connection | Bolt On |
| Frame Type | K |
| Amperage | 400 |
| Poles | 3 |
| Voltage Max | 1000 VAC |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 14 Kiloampere @ 1000VAC, 10 Kiloampere @ 250VDC |
| Trip Setting | 875-1750 |
| Standard Lug Type | Metric Line and Load Terminal Kit |
Certified Reconditioned
Qty in Stock: 1
