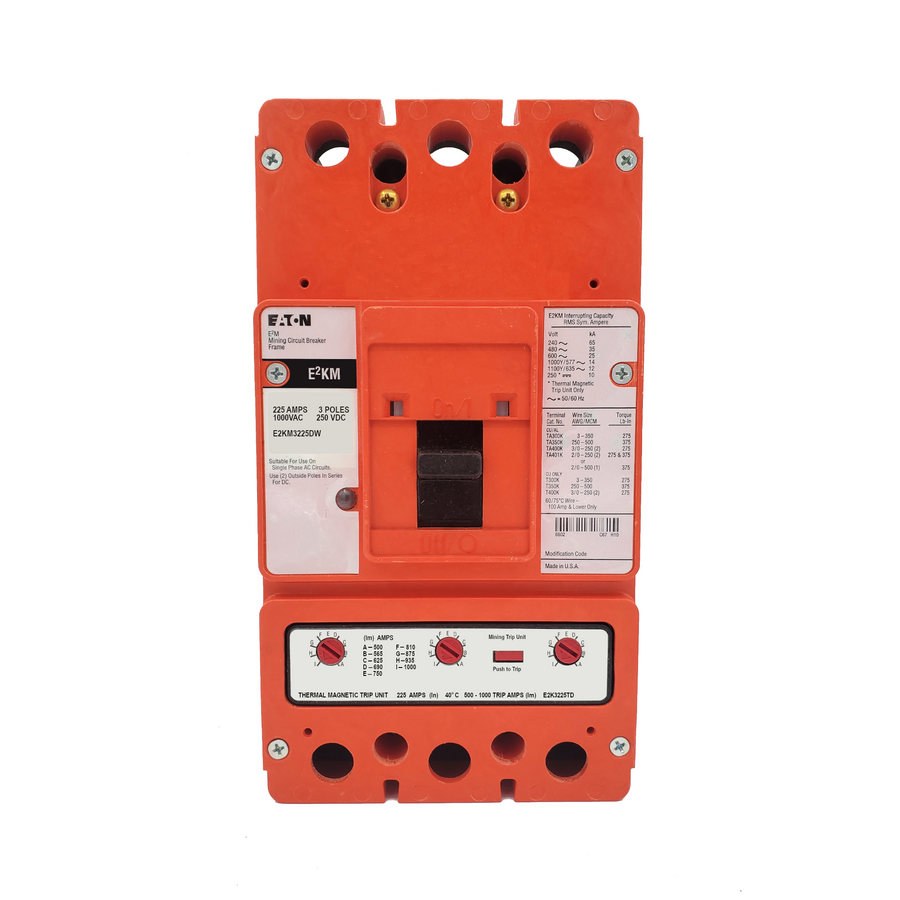

E2KM3225DW

Certified Reconditioned

Qty in Stock: 1

$1,395.00

U18 - Certified Reconditioned

Qty in Stock: 1

$1,565.00

U66 - Certified Reconditioned

Qty in Stock: 1

$1,695.00

Follow the links below to order accessories used to create additional configurations for this unit.

 1. Auxiliary Switches:
     A1X3PK
     A2X3PK
 2. Shunt Trips:
     SNT3P11K
 3. Undervoltage Releases (UVRs):
     UVH3LP08K
     UVH3LP11K
     UVH3LP26K
 4. Terminal/Lug Kits:
     T300K
     T350K
     3T400K

If a UVR light (LED) is not required, we'd suggest ordering the U18 option to reduce cost and lead time.

Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Product Description

Specs are as follows:

E2KM Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Thermal-Magnetic Trip Unit, 225 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 14 Kiloampere @ 1000VAC, 10 Kiloampere @ 250VDC, Without Terminals Standard, U18 (Without LED) and U66 (With LED) Options Includes: [110-127VAC UVR Installed, Right Pole Mounted, Exiting Rear]

Specifications

Manufacturer Eaton / Cutler Hammer
Warranty One Year
Configuration
Connection
Frame Type K
Amperage 225
Poles 3
Voltage Max 1000 VAC
Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 14 Kiloampere @ 1000VAC, 10 Kiloampere @ 250VDC
Trip Setting 500-1000
Standard Lug Type Without Terminals Standard
