Follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches:
A1X3PK
A2X3PK
2. Shunt Trips:
SNT3P11K
3. Undervoltage Releases (UVRs):
UVH3LP08K
UVH3LP11K
UVH3LP26K
4. Terminal/Lug Kits:
T300K
T350K
3T400K
If a UVR light (LED) is not required, we'd suggest ordering the U18 option to reduce cost and lead time.
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description

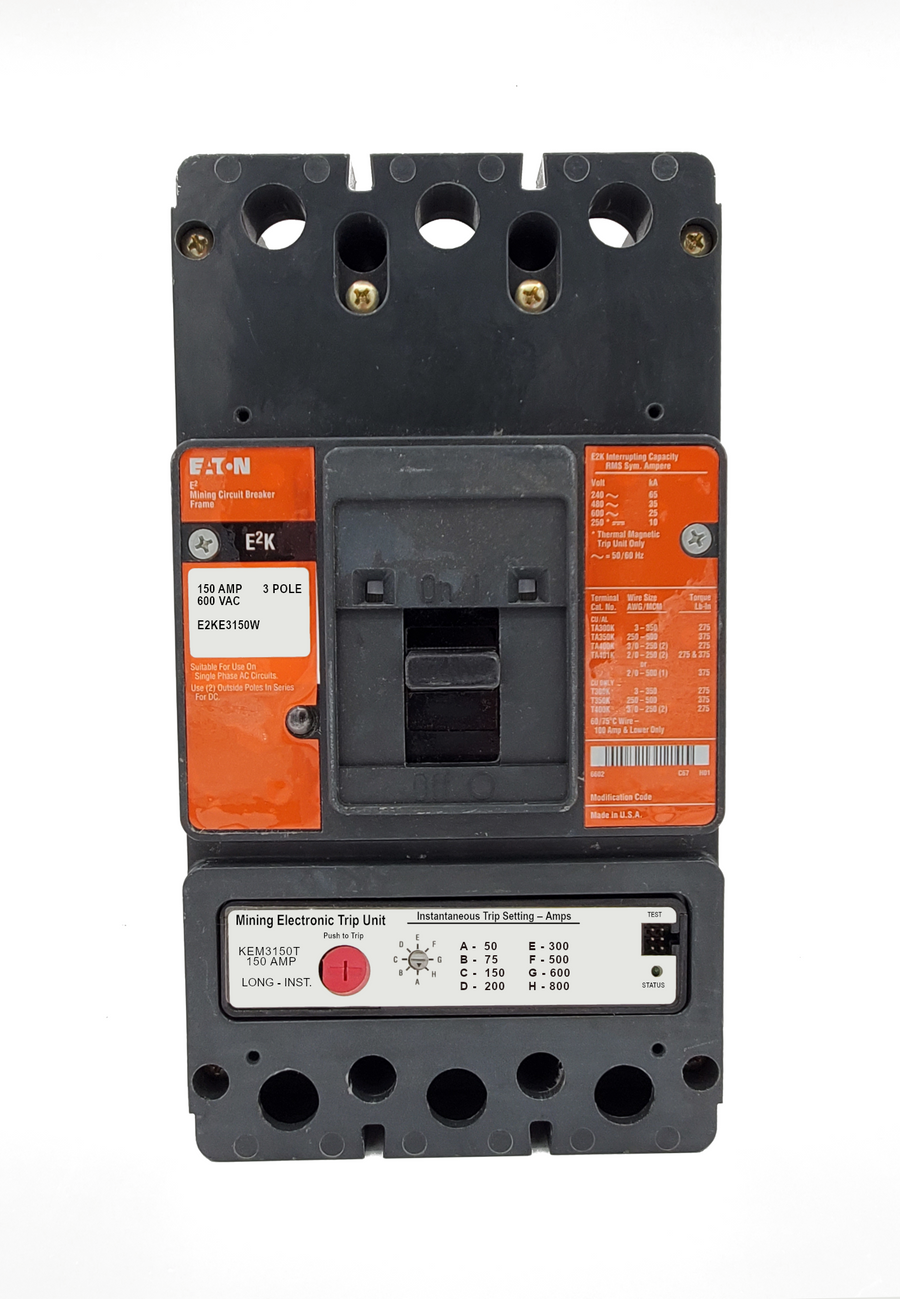

E2K Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Long/Instantaneous, 150 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, Without Terminals Standard, U18 (Without LED) and U66 (With LED) Options Includes: [110-127VAC UVR Installed, Right Pole Mounted, Exiting Rear],
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | |
| Connection | |
| Frame Type | K |
| Amperage | 150 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC |
| Trip Setting | 50-800 |
| Standard Lug Type | Without Terminals Standard |
