Product Description
Specs are as follows:
E2K Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, Without Terminals Standard, U18 Option Includes: [110-127VAC UVR Installed, Left Pole Mounted, Exiting Rear]

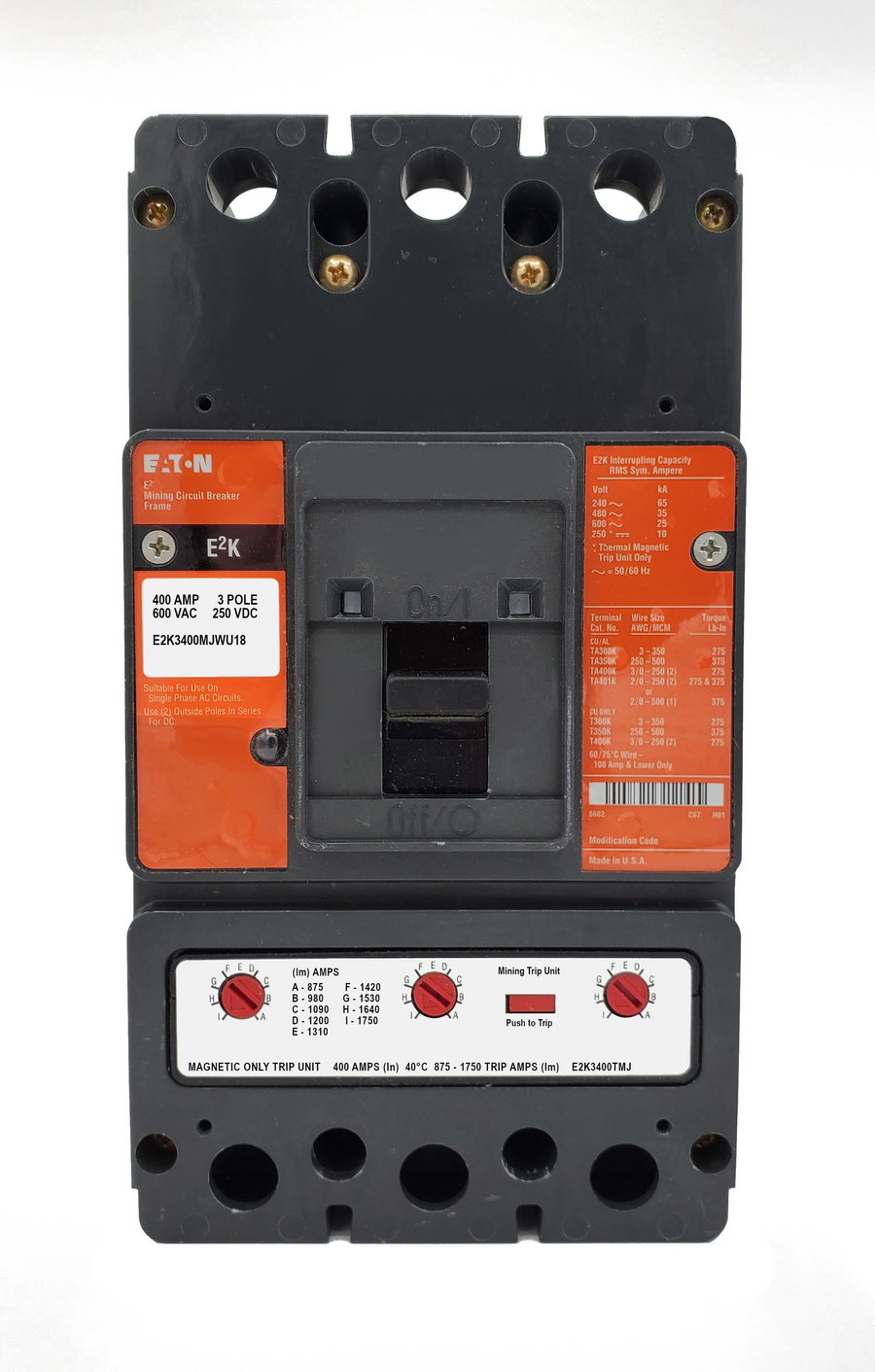

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Eaton / Cutler Hammer |
---|---|
Warranty | One Year |
Configuration | U18 Option Includes: [110-127VAC UVR Installed, Left Pole Mounted, Exiting Rear] |
Connection | Bolt On |
Frame Type | K |
Amperage | 400 |
Poles | 3 |
Voltage Max | 600 VAC |
Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC |
Trip Setting | 875-1750 |
Standard Lug Type | Without Terminals Standard |
