Product Description
Specs are as follows:

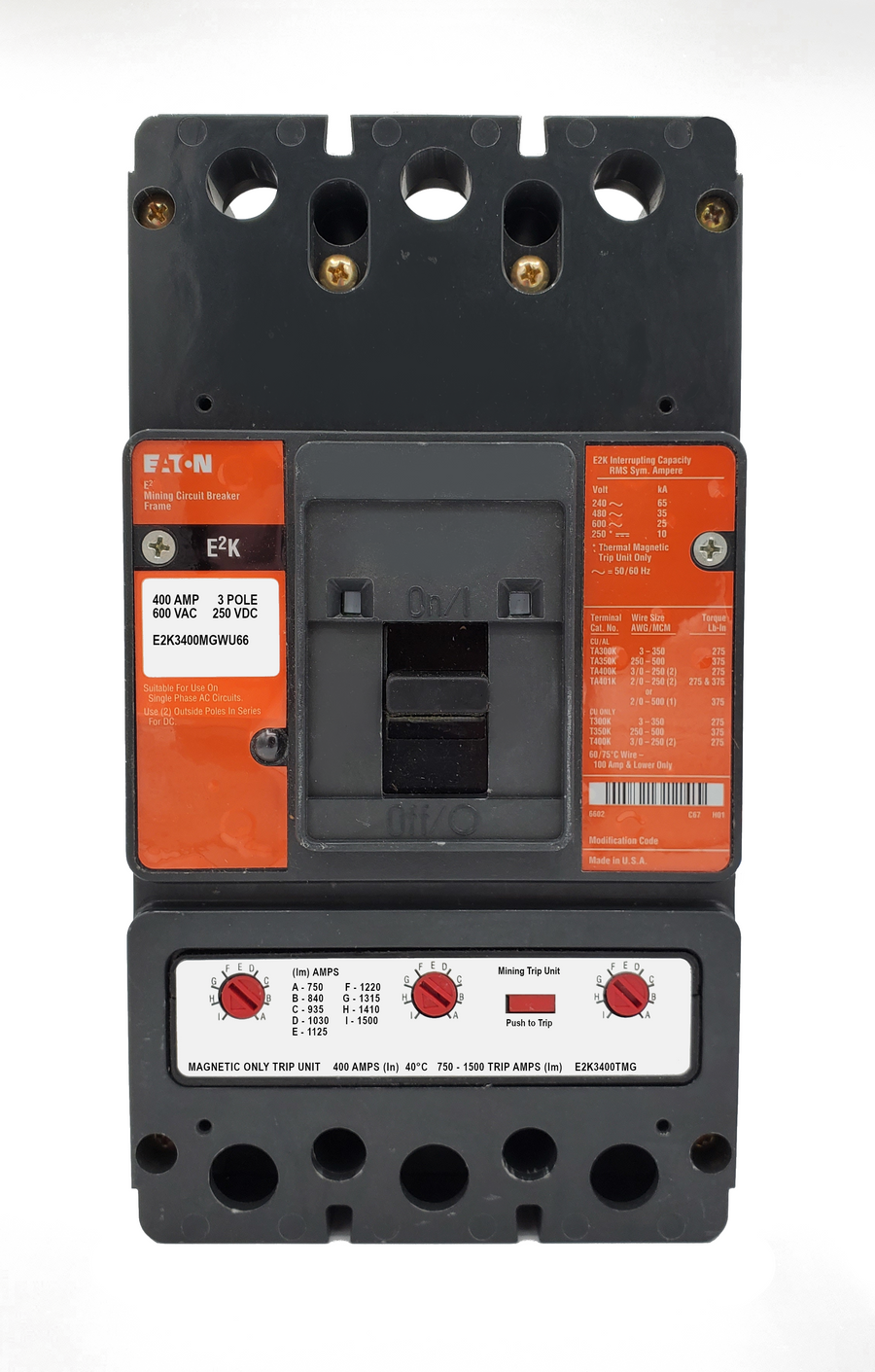

E2K Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, Without Terminals Standard, U66 Option Includes: [110-127VAC UVR Installed, Left Pole Mounted, Exiting Rear]
Follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches:
2. Optional Shunt Trips:
3. Undervoltage Release (U66):
UVM3LP08K
4. Optional Terminal/Lug Kits:
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | U66 Option Includes: [110-127VAC UVR Installed, Left Pole Mounted, Exiting Rear] |
| Connection | |
| Frame Type | K |
| Amperage | 400 |
| Poles | 3 |
| Voltage Max | 600 VAC |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC |
| Trip Setting | 750-1500 |
| Standard Lug Type | Without Terminals Standard |
