Specs are as follows:

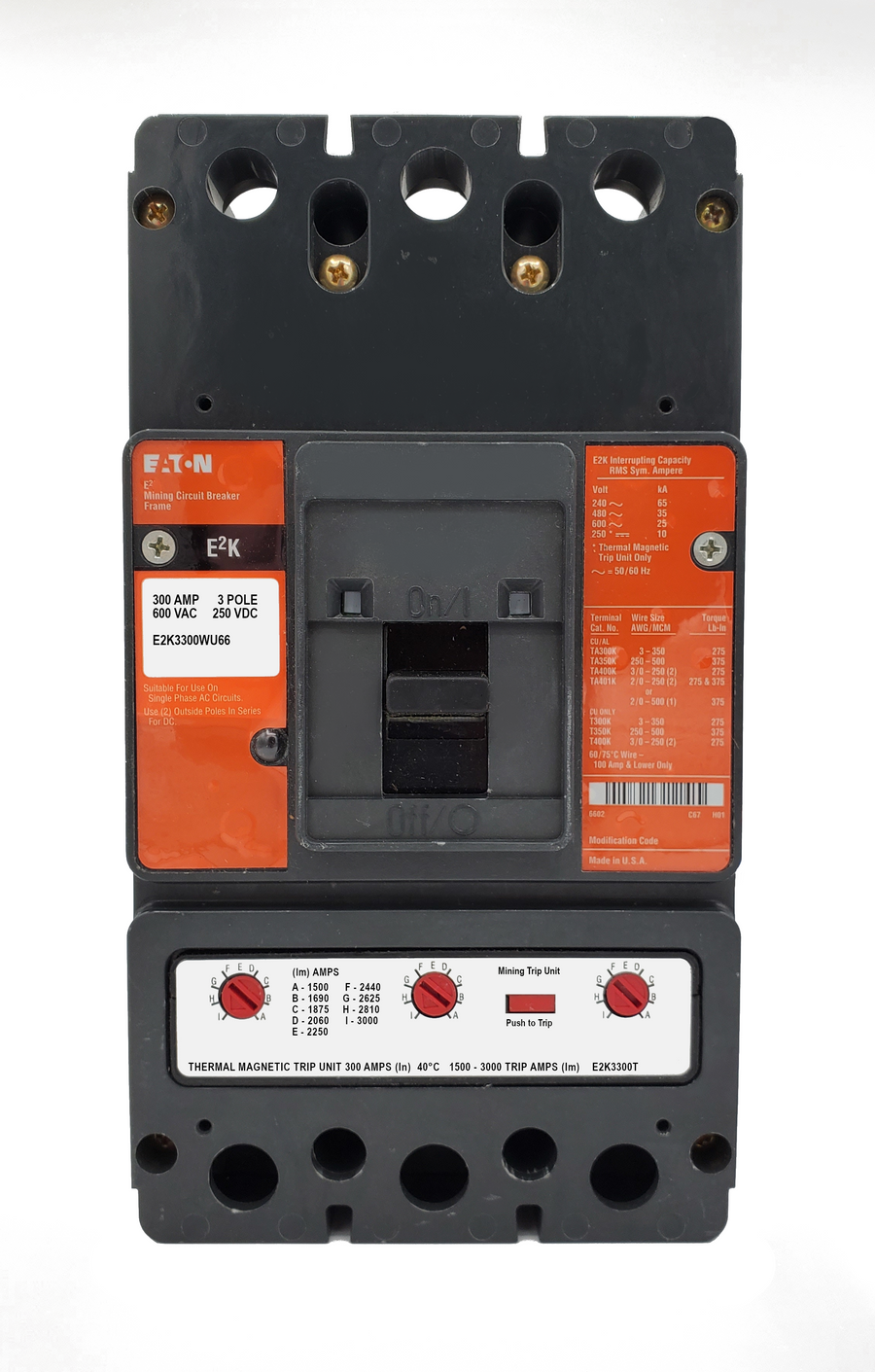

E2K Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Thermal-Magnetic Trip Unit, 300 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, Without Terminals Standard, U66 Option Includes: [110-127VAC UVR Installed, Left Pole Mounted, Exiting Rear]
Follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches:
2. Optional Shunt Trips:
3. Undervoltage Release Installed (U66):
4. Optional Terminal/Lug Kits:
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Configuration||U66 Option Includes: [110-127VAC UVR Installed, Left Pole Mounted, Exiting Rear]|
|Interrupting Capacity Rating||65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC|
|Standard Lug Type||Without Terminals Standard|
