Specs are as follows:

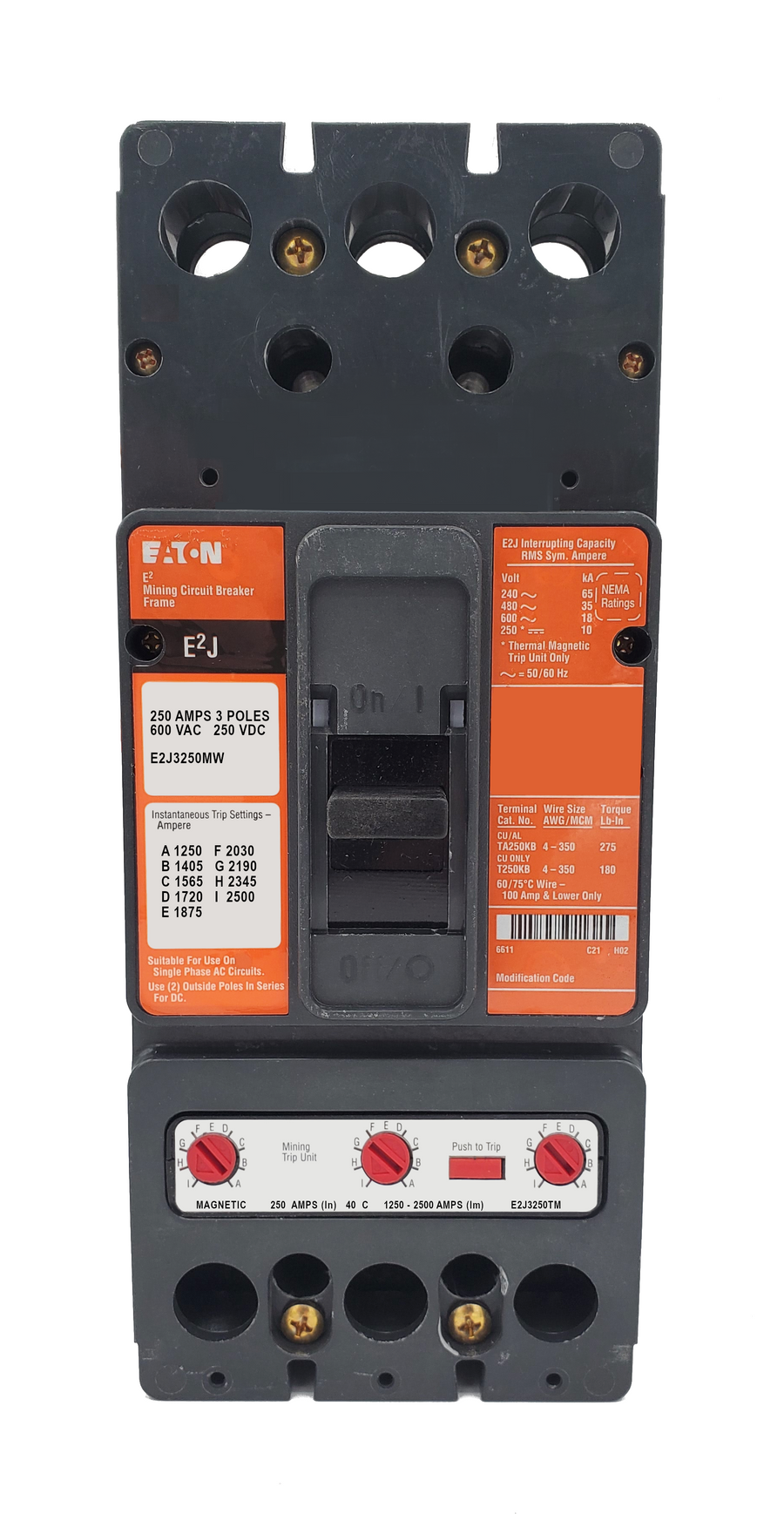

E2J Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 250 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, Without Terminals Standard, A02 Option includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Rear], U18 Option Includes: [110-127VAC UVR Installed, Right Pole Mounted, Exiting Rear]
Follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches
2. Optional Shunt Trips
3. Optional Undervoltage Releases (UVRs)
4. Optional Terminal/Lug Kits
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Voltage Max||600 VAC|
|Interrupting Capacity Rating||65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC|
|Standard Lug Type||Without Lugs Standard|
