Follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches:
A1X2PK
A2X2PK
2. Shunt Trips:
SNT2P11K
3. Undervoltage Releases (UVRs):
UVH2LP08K
UVH2LP11K
4. Terminal/Lug Kits:
T250KB
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description
Specs are as follows:

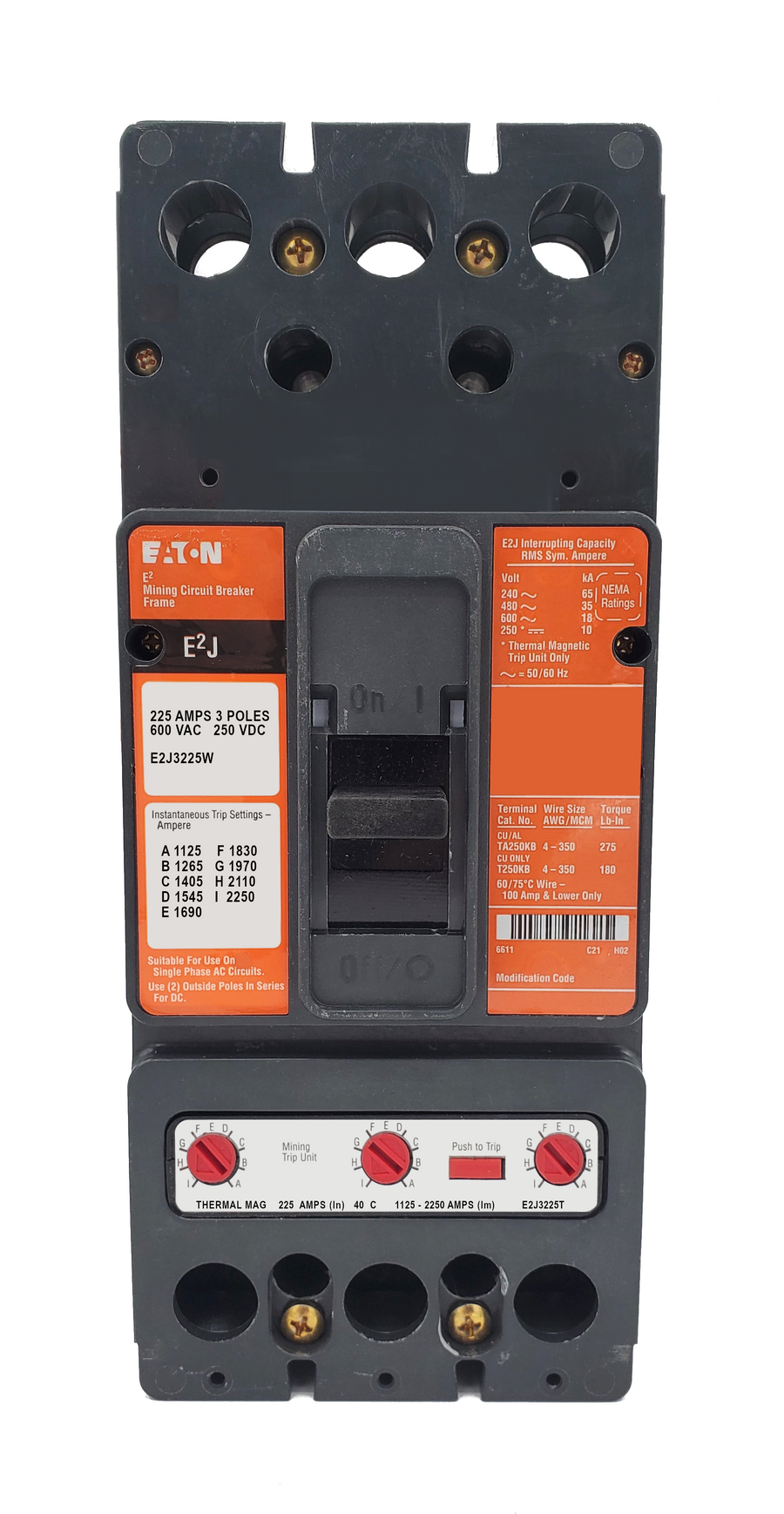

E2J Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Thermal-Magnetic Trip Unit, 225 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, Without Terminals Standard, A02 Option includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Rear], U18 Option Includes: [110-127VAC UVR Installed, Right Pole Mounted, Exiting Rear]
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | |
| Connection | |
| Frame Type | J |
| Amperage | 225 |
| Poles | 3 |
| Voltage Max | 600 VAC |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC |
| Trip Setting | 1125-2250 |
| Standard Lug Type | Without Lugs Standard |
