E2J Frame Style Trip Unit, Mining Circuit Breaker Accessory
Follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches:
A1X2PK
A2X2PK
2. Shunt Trips:
SNT2P11K
3. Undervoltage Releases (UVRs):
UVH2LP08K
UVH2LP11K
4. Terminal/Lug Kits:
T250KB
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description
Specs are as follows:

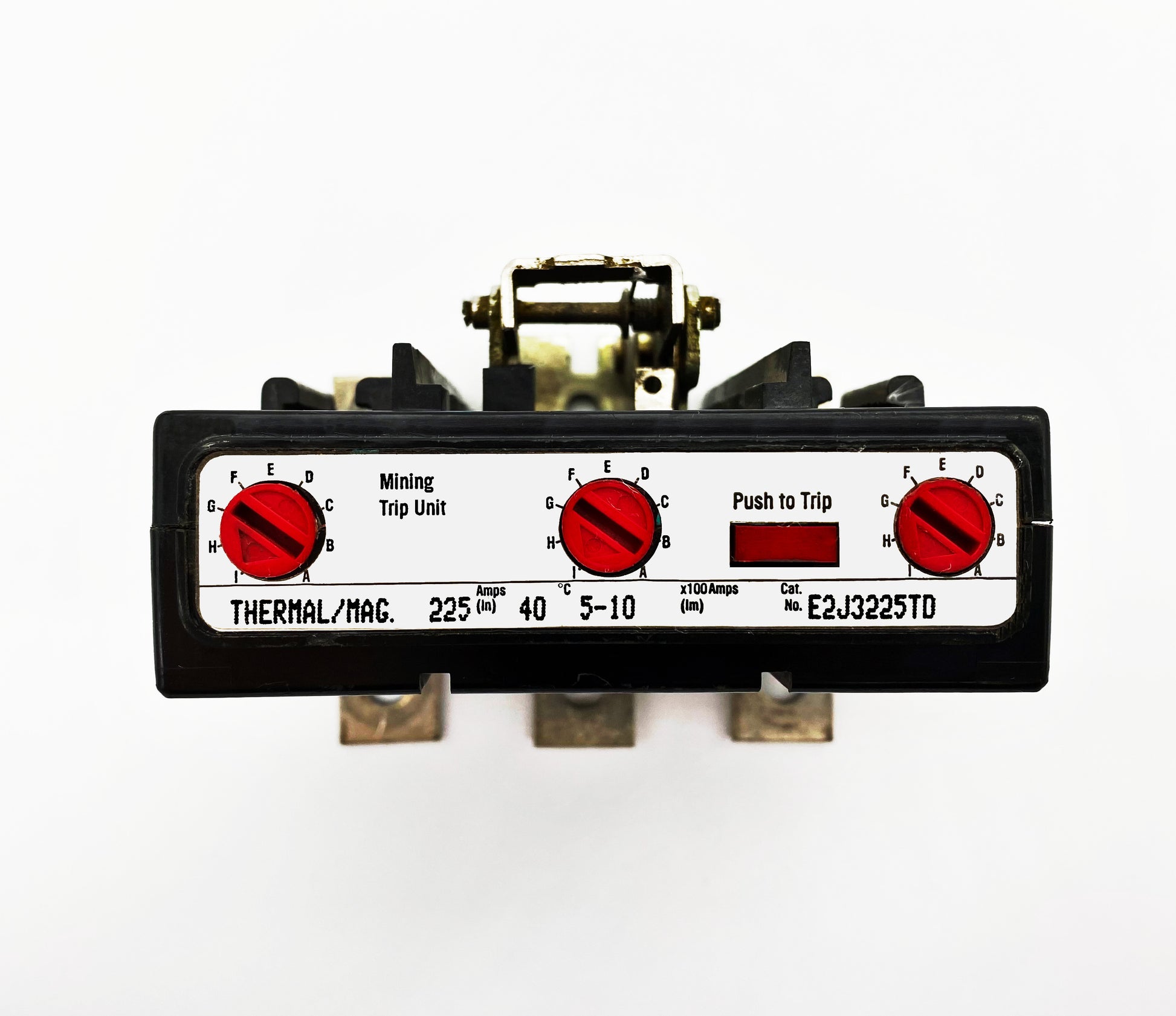

Trip Unit, J Frame Style, Thermal-Magnetic, 225 Ampere at 40 Degree Celsius, 3 Pole, 500-1000 Amp Trip Rating, For Use in Molded Case Circuit Breakers With Optional Interchangeable Trip Units.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt In |
| Frame Type | J |
| Amperage | 225 |
| Poles | 3 |
| Trip Setting | 500-1000 |
