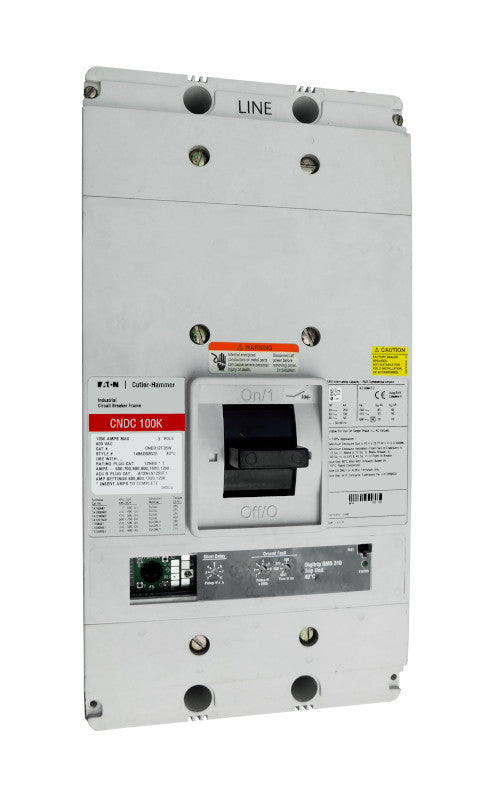

CNDC Frame Style, Molded Case Circuit Breaker, 100% Rated, Ultra High Interrupting Capacity, Electronic Non-Interchangeable Trip Unit (Digitrip RMS 310), LSG Trip Unit Functions, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 200 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC, Rating Plug Not Included, Without Terminals
L - Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S - Adjustable Short Delay Pickup with Fixed Short Delay Time (l2t Response) or Adjustable Short Delay Time (Flat Response)
G - Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)
Follow the links below to order accessories used to create additional configurations for this unit.
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Interrupting Capacity Rating||200 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC|
|Standard Lug Type||Without Terminals|
