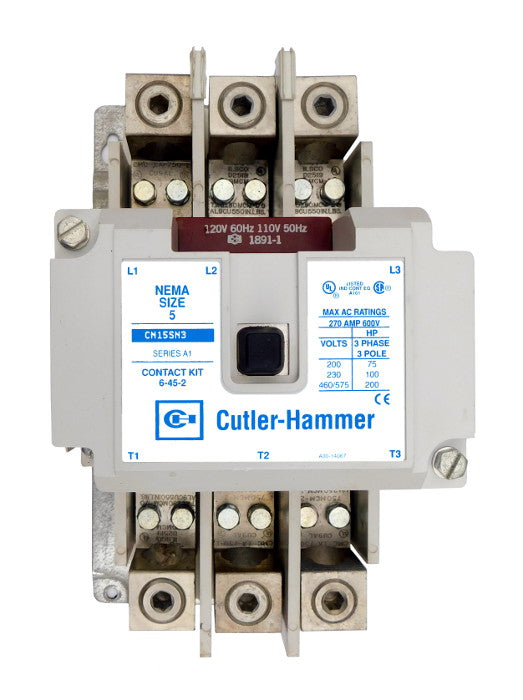

CN15SN3A Magnetic Motor Contactor, A Series, NEMA Size 5, 270 Amps, 3 Poles, 120V AC Coil, Full Voltage 600VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 75 @ 208VAC, 100 @ 240VAC, 200 @ 480VAC, 200 @ 600VAC, Line and Load End Terminals Standard. New Surplus and Certified Reconditioned with 1 Year Warranty.

CN15SN3C

by Eaton / Cutler Hammer
Call for Price

Certified Reconditioned

Click for Info
$2,495.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

Magnetic Motor Contactor, A Series, NEMA Size 5, 270 Amps, 3 Poles, 480V AC Coil, Full Voltage 600VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 75 @ 208VAC, 100 @ 240VAC, 200 @ 480VAC, 200 @ 600VAC, Line and Load End Terminals Standard

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications


Manufacturer Eaton / Cutler Hammer
Warranty One Year
Amperage 270
Coil Voltage 480
Phase 3
Voltage Max 600
Nema Size 5
Reversing or Non-Reversing Non-Reversing
Maximum Ratings 75 HP @ 208VAC 100 HP @ 240VAC 200 HP @ 480VAC 200 HP @ 600VAC
Poles 3
Standard Lug Type Line and Load
