Product Description
Specs are as follows:

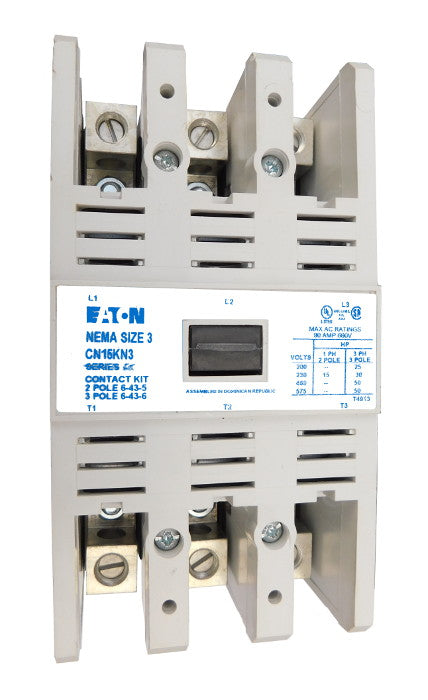

Magnetic Motor Contactor, A Series, NEMA Size 3, 90 Amps, 3 Poles, 120V AC Coil, Full Voltage 600VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 25 @ 208VAC, 30 @ 240VAC, 50 @ 480VAC, 50 @ 600VAC, Line and Load End Terminals Standard
Look under Parts & Accessories to order accessories used to create additional configurations for this unit.
Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 90 |
| Coil Voltage | 120 |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 3 |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 25 HP @ 208VAC, 30 HP @ 240VAC, 50 HP @ 480VAC, 50 HP @ 600VAC |
| Poles | 3 |
| Standard Lug Type | Line and Load |
