CKD3400F w/KES3125LSI (RMS 310)
Specs are as follows:
CKD Frame Style, Molded Case Circuit Breaker, 100% Rated, Electronic Digitrip RMS 310, 125 Ampere Max at 40 Degree Celsius, Amperage Determined By Rating Plug (Uses Electronic Trip Units Only), 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, Rating Plug Not Included, Without Terminals Standard.
ATTENTION: This unit requires a rating plug in order to function. Please give us a call or notate during checkout which rating plug you are needing before placing your order to ensure you receive a complete, working unit.
Below is a list of available rating plugs:
1KES070T / 1KES090T / 1KES100T / 1KES110T / 1KES125T / A1KES125T1
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)
I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous

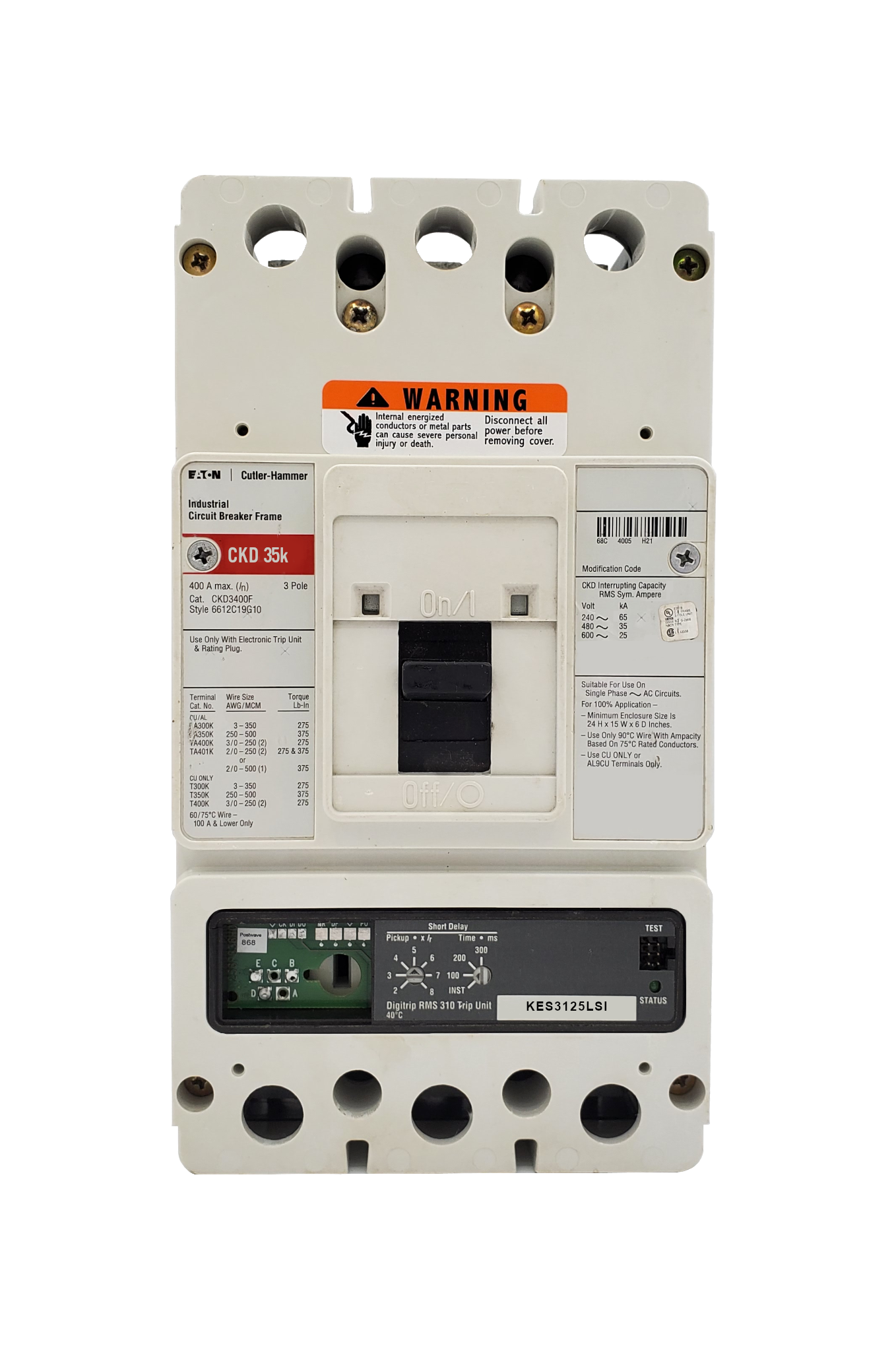

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Amperage||125 Ampere Max|
|Interrupting Capacity Rating||65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC|
|Standard Lug Type||Without Terminals|
