Magnetic Motor Starter, Nema Size 8, 1215 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Type C Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings (3 Phase): 400 @ 208VAC, 450 @ 240VAC, 900 @ 480VAC, 900 @ 600VAC.
1. Auxiliary Interlocks
2. Coils
3. Contact Kits
4. Heaters
5. Overloads
Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description

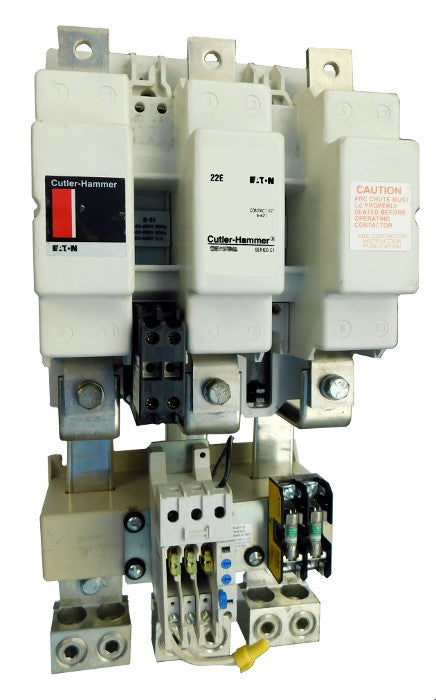

Magnetic Motor Starter, Nema Size 8, 1215 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Type C Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings (3 Phase): 400 @ 208VAC, 450 @ 240VAC, 900 @ 480VAC, 900 @ 600VAC.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 1215 |
| Coil Voltage | 120VAC |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 8 |
| Coil Type | Magnetic |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 400 HP @ 208VAC, 450 HP @ 240VAC, 900 HP @ 480VAC 900 HP @ 600VAC |
| Application | Full Voltage |
| Poles | 3 |
