AN16GN0AC
Product Description

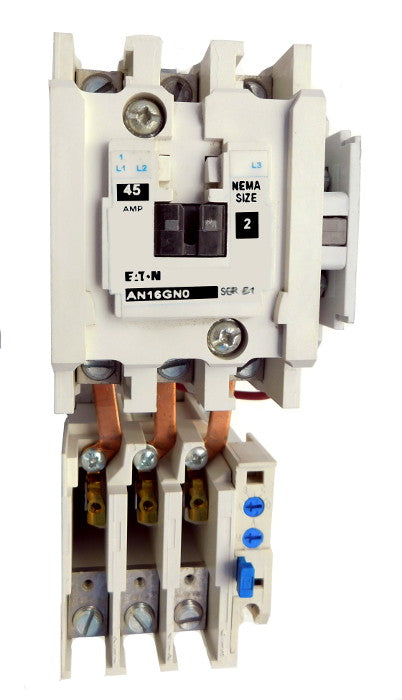

Magnetic Motor Starter, Nema Size 2, 45 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Type C Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings (3 Phase): 10 @ 208VAC, 15 @ 240VAC, 25 @ 480VAC, 25 @ 600VAC.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 45 |
| Coil Voltage | 120VAC |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 2 |
| Coil Type | Magnetic |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 10 HP @ 208VAC, 15 HP @ 240VAC, 25 HP @ 480VAC 25 HP @ 600VAC |
| Application | Full Voltage |
| Poles | 3 |
New Surplus
Qty in Stock: 1
$950.00
Certified Reconditioned
Qty in Stock: 1
$750.00
